Same model may have multiple batches, images only for reference.

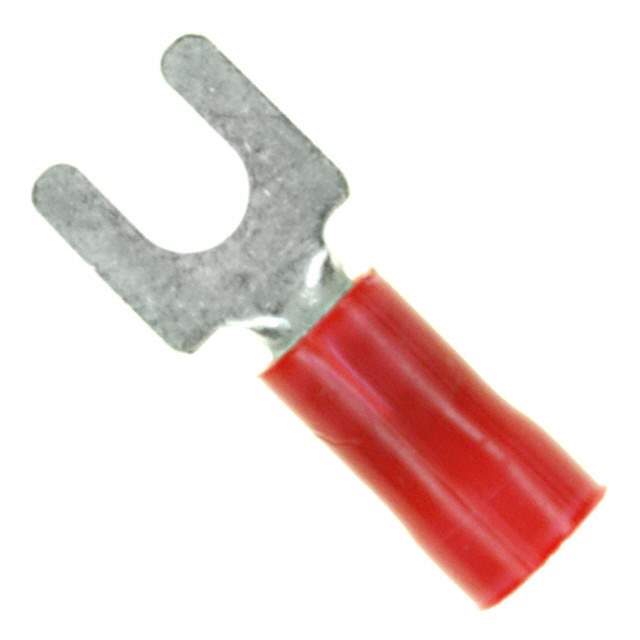

320665 Real Image
Same model may have multiple batches, images only for reference.

320665

Part No 320665
Manufacturer TE Connectivity
Catalog Terminals
Description CONN SPADE TERM 16-22AWG #6 RED / Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Stud/Tab Size 6 Stud
Width - Outer Edges 0.297" (7.54mm)
Length - Overall 0.765" (19.43mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Length - Ring Center to Termination 0.203" (5.16mm)
Length - Termination 0.416" (10.57mm)
Tongue Inside Opening 0.145" (3.68mm)
Base Product Number 3206
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -320665-LSI,-320665-SI,A0974
Standard Package 1,000
Win Source Part Number 1333772-320665
Ultra Librarian 3D Model Ultra Librarian 320665 CAD Model

Description

The TE Connectivity AMP Connectors 1333772-320665 is a bulk packaged spade connector with a serrated termination feature.

  • Termination: Crimp
  • Wire Gauge: 16-22 AWG
  • Contact Material: Copper
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Package: Bulk
  • Quantity: 1,000 connectors
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Width: 0.297" (7.54mm)
  • Overall Length: 0.765" (19.43mm)
  • Insulation Diameter: 0.105" to 0.140" (2.67mm to 3.56mm)
  • Stud/Tab Size: 6 Stud
  • Length: 0.203" (5.16mm) Ring Center to Termination
  • Termination Length: 0.416" (10.57mm)
  • Tongue Opening: 0.145" (3.68mm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
