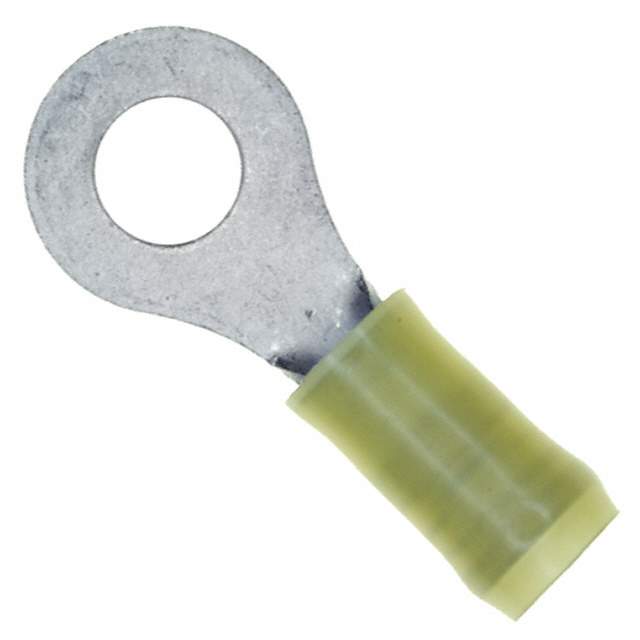

320569 Real Image
Same model may have multiple batches, images only for reference.

320569

Part No 320569
Manufacturer TE Connectivity
Catalog Terminals
Description Standard Terminals and Splices | CONN RING CIRC 10-12AWG #1/4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.531" (13.49mm)
Length - Overall 1.322" (33.58mm)
Mounting Style Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.230" (3.81mm ~ 5.84mm)
Material - Insulation Polyamide (PA), Nylon
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1128110-320569
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 320569 CAD Model

Description

The TE Connectivity AMP Connectors are circular terminals used in industrial applications.

  • Termination: serrated termination and crimp termination style
  • Insulation: insulated with polyamide (PA), Nylon insulation
  • Wire Gauge: 10-12 AWG
  • Color: yellow
  • Thickness: 0.040" (1.02mm)
  • Width: 0.531" (13.49mm)
  • Overall Length: 1.322" (33.58mm)
  • Mounting Type: free hanging (in-line)
  • Stud/Tab Size: 1/4 stud
  • Packaging: bulk
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
