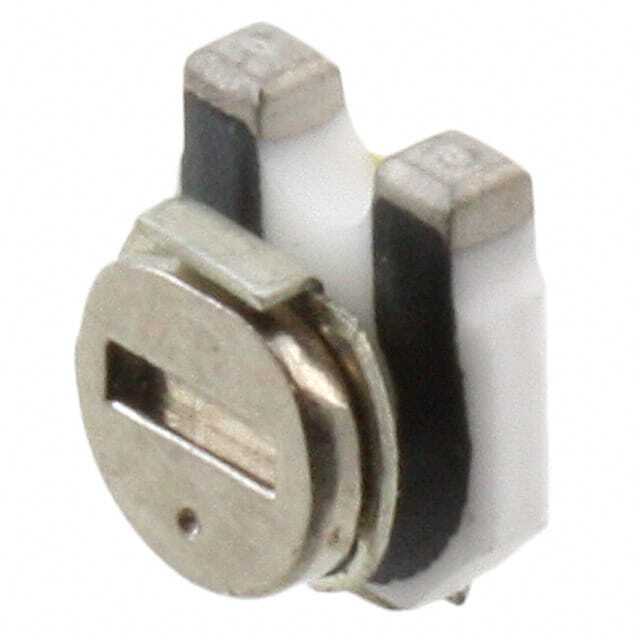

Part No 3142W504P
Manufacturer TE Connectivity
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.15W J LEAD TOP / 500 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr TE Connectivity
Series 3142, Citec
Package Tape & Reel
Product Status Obsolete
Resistance 500 kOhms
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.177" x 0.157" Face (4.50mm x 4.00mm)
Standard Package 1,600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 855620-3142W504P
Ultra Librarian 3D Model Ultra Librarian 3142W504P CAD Model

Description

The 855620-3142W504P is a trimmer potentiometer, belonging to the 3142 series, manufactured by TE Connectivity.

  • Termination Style: J Lead
  • Package: Tape & reel
  • Size/Dimension: Rectangular, 0.177" x 0.157" (4.50mm x 4.00mm)
  • Standard Package: 1,600 pieces
  • Tolerance: ±25%
  • Temperature Coefficient: ±250ppm/°C
  • Power Rating: 0.15W
  • Turns: 1
  • Resistive Material: Cermet
  • Resistance: 500 kOhms
  • Mounting Type: Surface Mount
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.40.8050
  • Status: Obsolete
