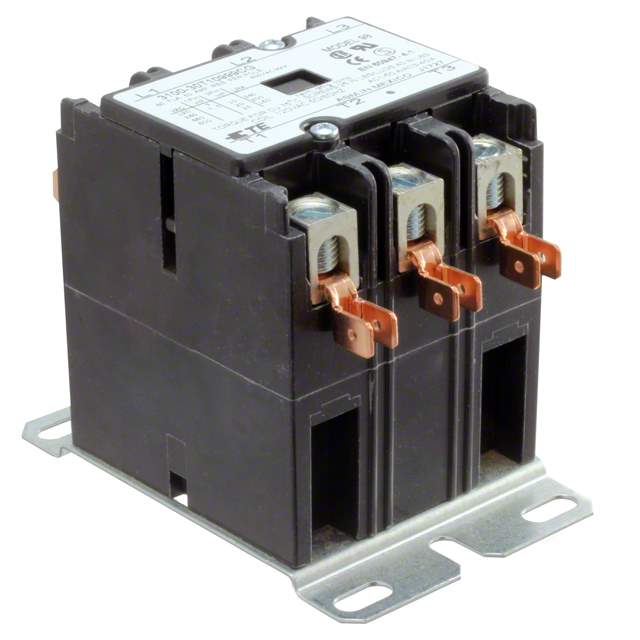

3100-30T10999CG Real Image
Same model may have multiple batches, images only for reference.

3100-30T10999CG

Part No 3100-30T10999CG
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR 3PST 40A 120V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Potter & Brumfield Relays
Series 3100, Products Unlimited
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 120VAC
Contact Form 3PST-NO (DM) (3 Form X)
Contact Rating (Current) 40 A
Switching Voltage 600VAC - Max
Features Insulation - Class B
Termination Style Screw Terminal, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 65°C
Must Operate Voltage 88 VAC
Must Release Voltage 20 VAC
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 5VA
Coil Resistance 180Ohms
Base Product Number 3100
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0065
Other Names 6-1611010-2,PB2215,3100-30T10999CG-ND
Standard Package 1
Win Source Part Number 1039569-3100-30T10999CG
Ultra Librarian 3D Model Ultra Librarian 3100-30T10999CG CAD Model

Description

The 3100-30T10999CG is a relay contactor manufactured by TE Connectivity Potter & Brumfield Relays.

  • Series: 3100 series of Products Unlimited
  • Contact Form: 3PST-NO (DM) (3 Form X)
  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Voltage: 120VAC
  • Coil Resistance: 180Ohms
  • Switching Voltage: 600VAC - Max
  • Contact Rating: 40A
  • Mounting: chassis mounting
  • Temperature Range for Operating: -40°C to 65°C
  • Insulation: class B insulation
  • Terminal: quick connect screw terminal of 0.250" (6.3mm)
  • Alternative parts: 3100-30T9999CY, PBC-040A3F, PBC-032A2F7, 3100-30U10999CG, and PBC-040A3Q6-1611010-2
