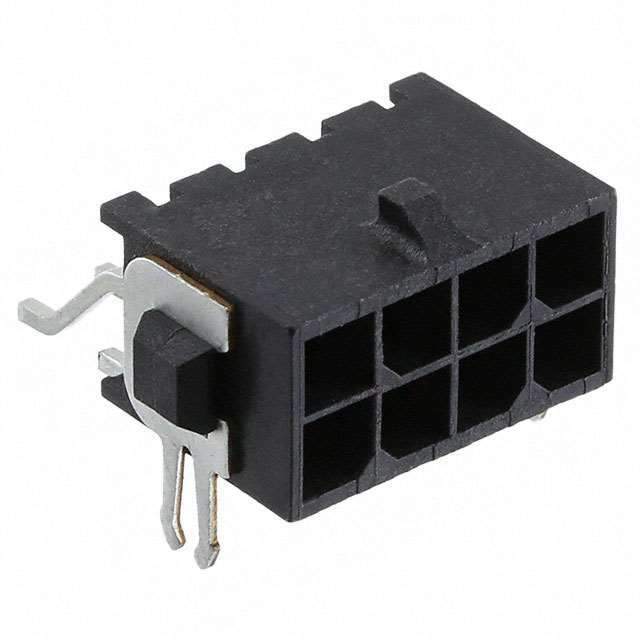

3-794624-8 Real Image
Same model may have multiple batches, images only for reference.

3-794624-8

Part No 3-794624-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 8POS DL R/A TIN SMD
Datasheet
3-794624-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Micro MATE-N-LOK
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General
Win Source Part Number 764446-3-794624-8
Popularity Medium
Supply and Demand Status Limited
Family Name 794624
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 3-794624-8 CAD Model

Description

TE Connectivity AMP Connectors' Micro MATE-N-LOK series connector is a versatile and reliable connector that is perfect for general applications. This connector features a board lock and a shrouded 4-wall design that ensures secure mating and protection against accidental disconnection.

  • Series: Micro MATE-N-LOK
  • Features: Board Lock, Shrouded 4-Wall
  • Pitch: 0.118" (3.00mm)
  • Current Rating: Varies by wire gauge
  • Mounting Type: Surface Mount, Right Angle
  • Insulation Material: Polyamide
  • Contact Material: Brass
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
