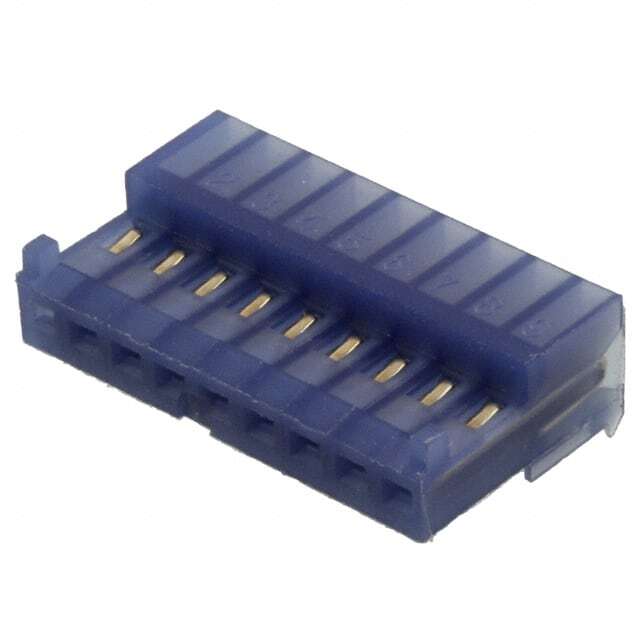

3-643815-9
Same model may have multiple batches, images only for reference.

3-643815-9

Part No 3-643815-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 9POS IDC 26AWG TIN / 9 Position Rectangular Receptacle Connector IDC Tin 26 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity
Series MTA-100
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 26 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color Blue
Base Product Number 643815
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 847667-3-643815-9
Ultra Librarian 3D Model Ultra Librarian 3-643815-9 CAD Model

Description

The 847667-3-643815-9 is a free-hanging, panel mount connector from the MTA-100 series.

  • Series: MTA-100
  • Mounting Type: Free Hanging, Panel Mount
  • Number of Positions: 9
  • Pitch: 0.100" (2.54mm)
  • Color: Blue
  • Feature: Closed End
  • Connector Type: Receptacle
  • Gender: Female Sockets
  • Wire Gauge: 26 AWG
  • Termination Method: IDC (Insulation Displacement Connection)
  • Wire Type: Discrete, Ribbon Cable
  • Manufacturer: TE Connectivity
  • Packaging: Bulk
  • Package Quantity: 500 Pieces
