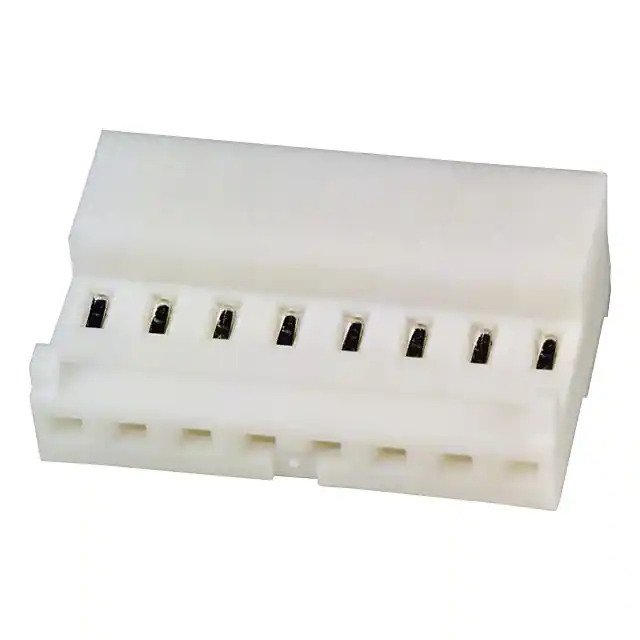

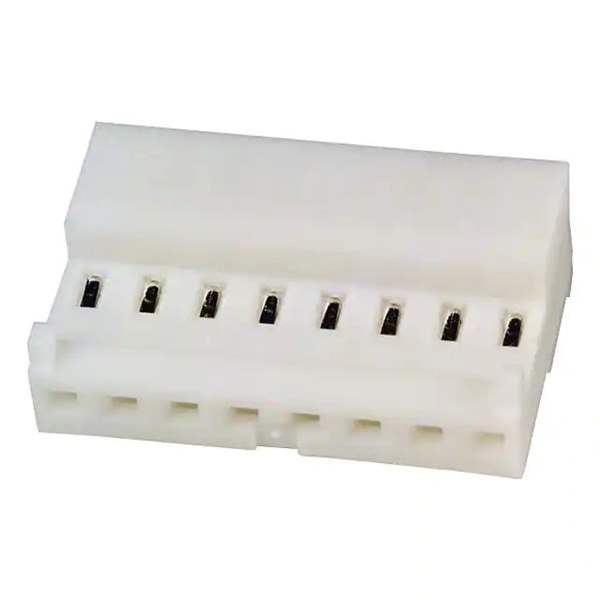

3-643814-8 TE Connectivity
Same model may have multiple batches, images only for reference.

3-643814-8

Part No 3-643814-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 8POS IDC 24AWG TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 24 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color White
Base Product Number 643814
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1366171-3-643814-8
Ultra Librarian 3D Model Ultra Librarian 3-643814-8 CAD Model

Description

The 643814 is a free hanging, panel mount rectangular connector from the MTA-100 series by TE Connectivity AMP Connectors.

  • Series: MTA-100
  • Connector Type: Receptacle, Female Socket
  • Number of Positions: 8
  • Number of Rows: 1
  • Fastening Type: Locking Ramp
  • Pitch: 0.100" (2.54mm)
  • Termination: IDC Cable
  • Wire Gauge: 24 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 80.0µin (2.03µm)
  • Color: White
  • Features: Closed End
  • Flammability Rating: UL94 V-0
