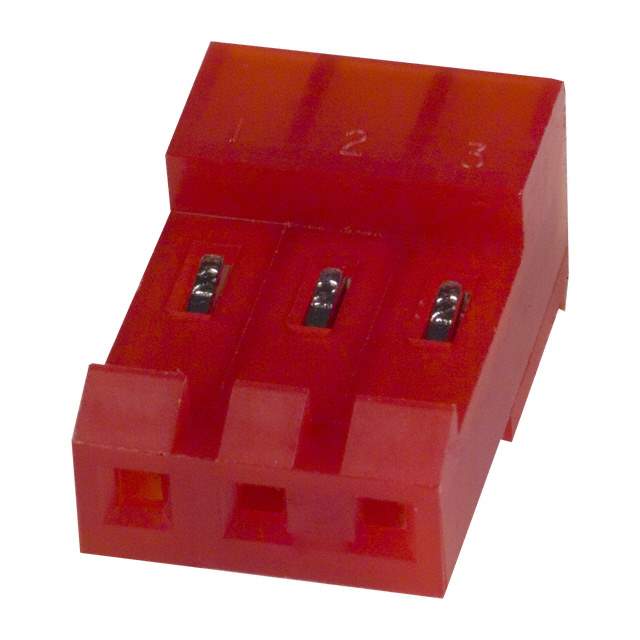

3-640428-3 Real Image
Same model may have multiple batches, images only for reference.

3-640428-3

Part No 3-640428-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 3POS IDC 22AWG TIN / 3 Position Rectangular Receptacle Connector IDC Tin 22 AWG
Datasheet
3-640428-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 22 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color Red
Base Product Number 640428
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -3-640428-3-LSI,A31229,-3-640428-3-SI,3-640428-3-ND,36404283
Standard Package 500
Win Source Part Number 1334216-3-640428-3
Ultra Librarian 3D Model Ultra Librarian 3-640428-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334216-3-640428-3 is a 3-position receptacle connector with a pitch of 0.156 inches (3.96mm).

  • Position Number: 3
  • Pitch: 0.156 inches (3.96mm)
  • Closed End: Yes
  • Fastening Type: locking ramp
  • Contact Type: female socket
  • Wire Gauge: 22 AWG
  • Cable Termination: IDC
  • Mounting Type: free-hanging (in-line)
  • RoHS: compliant
  • Contact Finish: tin
  • Contact Finish Thickness: 80.0µin (2.03µm)
  • Wire Type: discrete or ribbon cable
  • Packaging: bulk
  • Standard Package: 500
  • Base Product Number: 640428
  • Other Part Numbers: -3-640428-3-LSI, A31229, -3-640428-3-SI, 3-640428-3-ND, 36404283
  • MSL Level: 1 (Unlimited)
  • REACH: vendor undefined
  • HTSUS: 8536.69.8000
