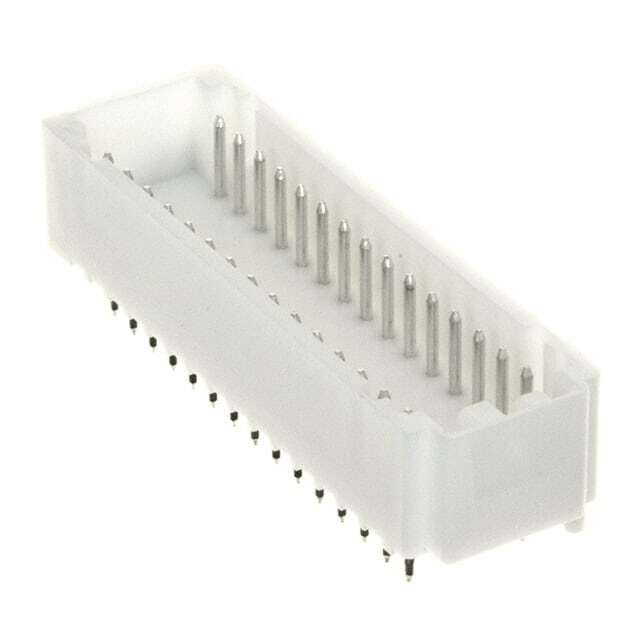

3-292141-0

Name: 3-292141-0
Brand: TE Connectivity
SKU: 855657
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	3-292141-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 30POS 2MM / Connector Header Through Hole 30 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	CT
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.256" (6.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.185" (4.70mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.386" (9.80mm)
Insulation Height	0.295" (7.50mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Guide
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	125VAC
Applications	General Purpose
Base Product Number	292141
Standard Package	120 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855657-3-292141-0
Ultra Librarian 3D Model	Ultra Librarian 3-292141-0 CAD Model

Alternative Products

Description

The CT series header is a male pin rectangular connector designed for general-purpose applications.

Fastening Type: Detent Lock
Termination: Solder Terminated
Pitch: 0.079" (2.00mm)
Positions: 30
Shrouded: 4 Walls
Voltage Rating: 125VAC
Contacts: Brass
Insulation Material: Polyamide (PA66)
Insulation Color: Natural
Mounting: Through-Hole
Manufacturer: TE Connectivity
