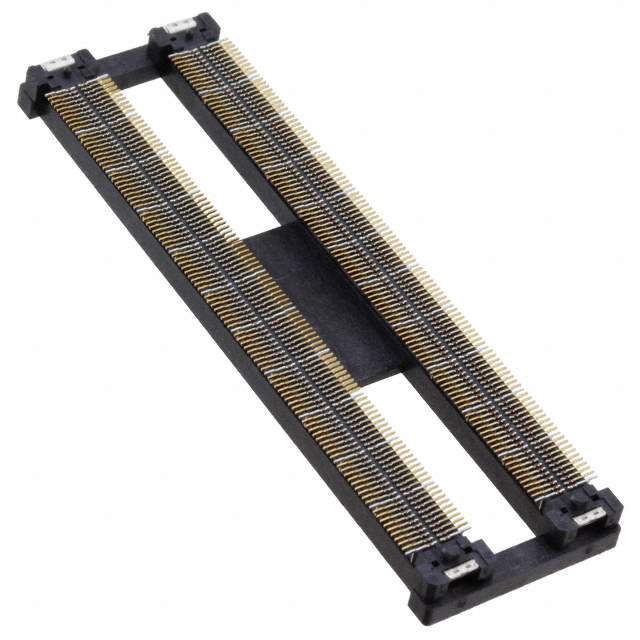

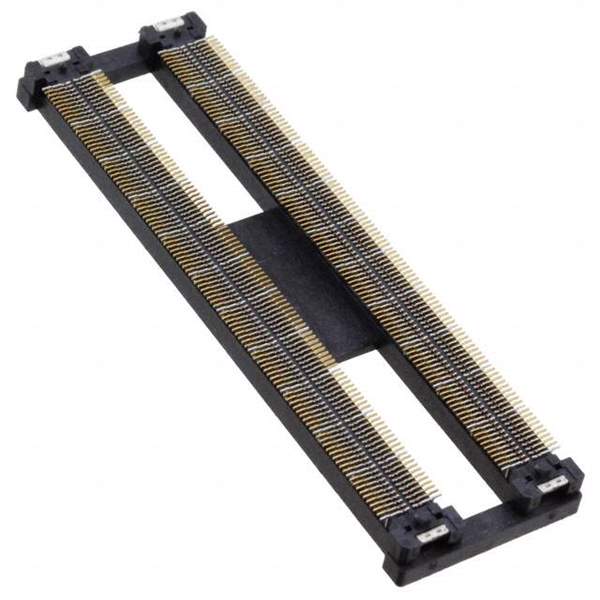

Same model may have multiple batches, images only for reference.

3-1827231-6

Name: 3-1827231-6
Brand: TE Connectivity
SKU: 763143
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3-1827231-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RECPT 440POS 0.5MM DUAL SMT
Datasheet	3-1827231-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	Free Height (FH)
Packaging	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	440
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD
Features	Board Guide, Ground Plate
Contact Finish	Gold
Contact Finish Thickness	8μin (0.20μm)
Mated Stacking Heights	5mm, 8mm
Height Above Board	0.128" (3.25mm)
Win Source Part Number	763143-3-1827231-6
Popularity	Medium
Supply and Demand Status	Limited
Family Name	1827231
Introduction Date	September 07, 2006
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 3-1827231-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 763143-3-1827231-6 is a connector manufactured by TE Connectivity AMP Connectors.

Connector Type: Receptacle, Center Strip Contacts
Positions: 440
Packaging: Tray
Series: Free Height (FH)
Pitch: 0.020" (0.50mm)
Features: Board Guide, Ground Plate
Height Above Board: 0.128" (3.25mm)
Contact Finish: Gold, 8μin (0.20μm)
Estimated EOL Date: 2026
Halogen Free: Yes
