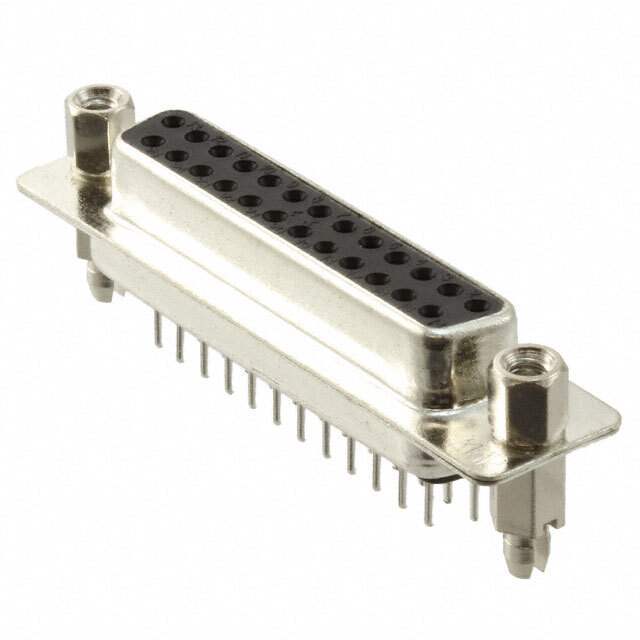

3-1634224-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-1634224-2

Part No 3-1634224-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS VERT SLDR
Datasheet
3-1634224-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304846-3-1634224-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- D-Sub, D-Shaped Connectors- D-Sub Connector Assemblies
Packaging  Tray
Part Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole
Flange Feature Mating Side, Female Screwlock (4-40)
Ultra Librarian 3D Model Ultra Librarian 3-1634224-2 CAD Model

Description

25 Position D-Sub Receptacle, Female Sockets Connector
