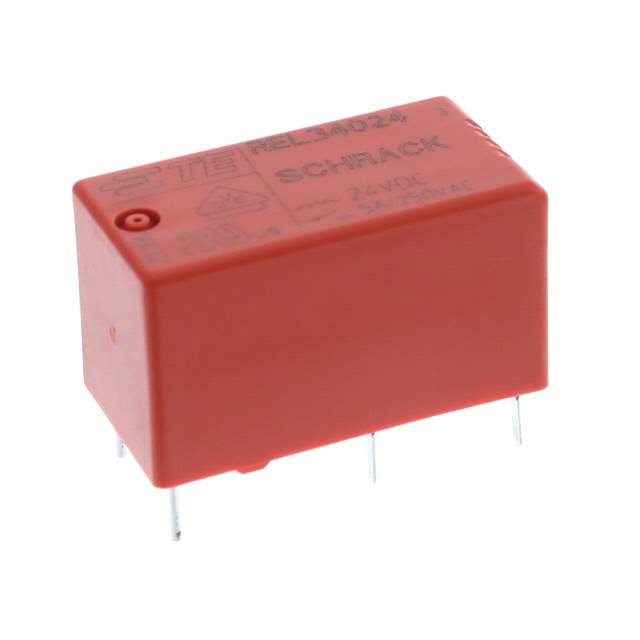

3-1415535-7 Real Image
Same model may have multiple batches, images only for reference.

3-1415535-7

Part No 3-1415535-7
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series REL, SCHRACK
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 400VAC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Base Product Number 1415535
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Other Names 2266-3-1415535-7,3-1415535-7-ND,-3-1415535-7-SI,REL34024,PB2498
Standard Package 25
Win Source Part Number 1068874-3-1415535-7
Ultra Librarian 3D Model Ultra Librarian 3-1415535-7 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays REL, SCHRACK is a general-purpose relay that can be used in various applications.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver nickel (AgNi)
  • Standard Package: 25
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15 mA
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 5 A
  • Switching Voltage: 400VAC - Max
  • Release Time: 5 ms
