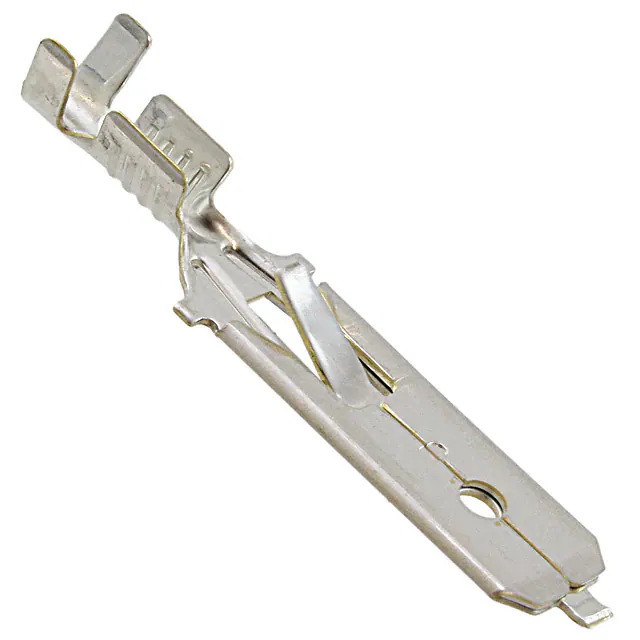

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.618" (15.70mm)
Length - Overall 1.063" (27.00mm)
Termination Crimp
Wire Gauge 17-28 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" (2.29mm)
Base Product Number 293041
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364744-293041-2
Ultra Librarian 3D Model Ultra Librarian 293041-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston series offers a reliable and efficient solution for quick connect and disconnect applications.

  • Terminal Type: Male
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Length: 1.063" (27.00mm)
  • Insulation Diameter: 0.090" (2.29mm)
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 17-28 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Series: Fastin-Faston
