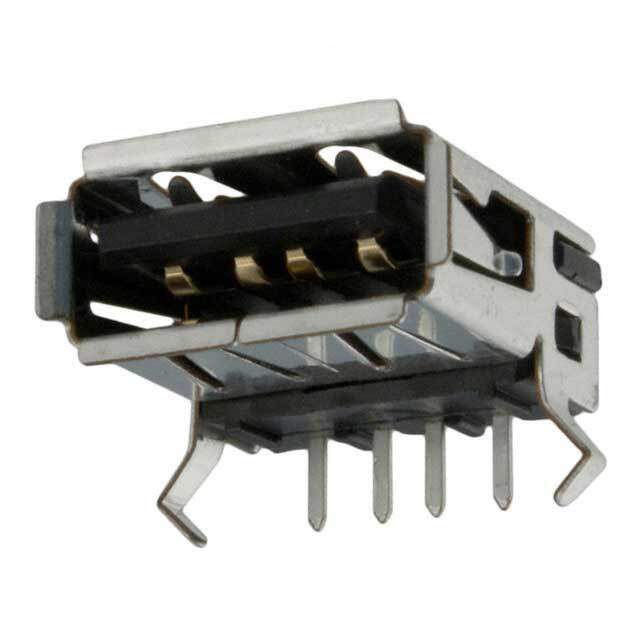

Same model may have multiple batches, images only for reference.

292303-1

Name: 292303-1
Brand: TE Connectivity
SKU: 418001
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	292303-1
Manufacturer	TE Connectivity
Catalog	USB, DVI, HDMI Connectors
Description	Conn USB 2.0 Type A RCP 4 POS 2mm/2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Box/Tube / CONN USB RECEPT R/A TYPE A 4POS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube/Rail
Status	Active
Connector Type	USB - A
Number of Contacts	4
Gender	Receptacle
Specifications	USB 2.0
Mounting	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Lock
Temperature Range - Operating	-55°C to 85°C
Number of Ports	1
Current Rating	1A per Contact
Voltage Rating	30VAC
Mating Cycles	1500
Contact Finish	Gold or Gold-Palladium
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	1003686-292303-1
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Industrial, Portable Devices, Communications & Networking
Family Name	292303
Introduction Date	August 21, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 292303-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1003686-292303-1 is a USB-A receptacle connector with a board lock feature.

Supply and Demand Status: Balanced
Voltage Rating: 30VAC
Current Rating: 1A per contact
Contacts: 4
Material: UL94 V-0 rated material
Mounting: Through hole
Orientation: Right-angle
Mating Cycles: 1500
Applications: Industrial, portable devices, communications, and networking
