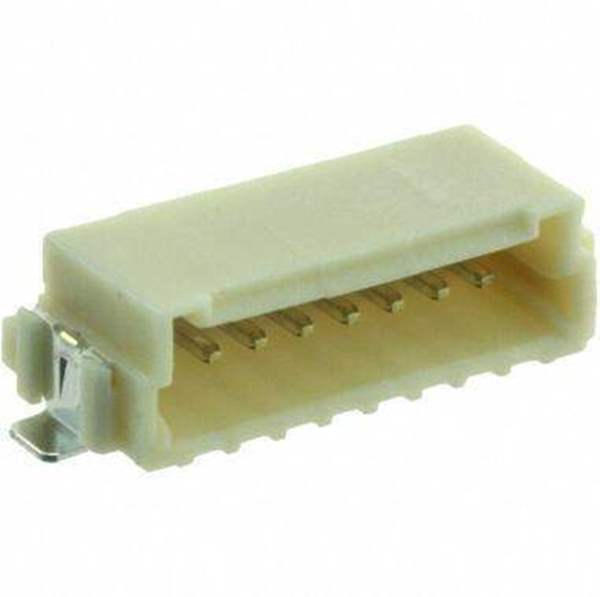

292228-8 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292228-8

Part No 292228-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 1.5MM
Datasheet
292228-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Part Status Active
Part Status Header
Contact Type Male Pin
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Insulation Material Insulation Material
Features Solder Retention
Win Source Part Number WS1307816-292228-8
Ultra Librarian 3D Model Ultra Librarian 292228-8 CAD Model

Description

Connector Header Surface Mount, Right Angle 8 position 0.059" (1.50mm)
