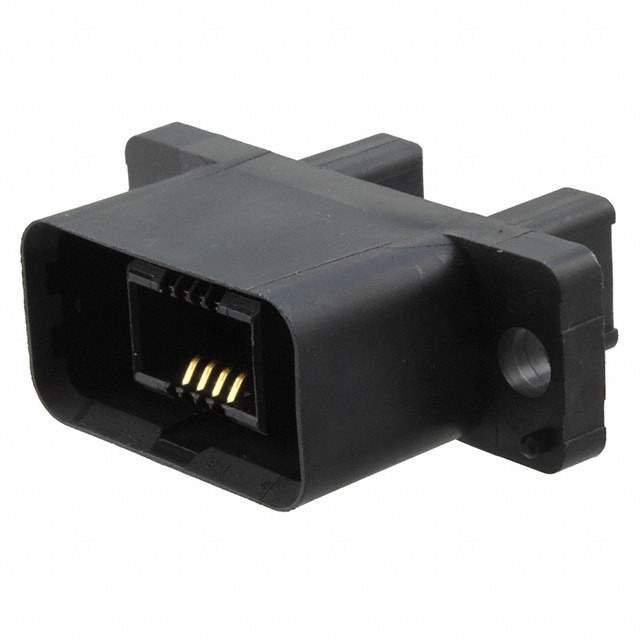

292182-8 Real Image
Same model may have multiple batches, images only for reference.

292182-8

Part No 292182-8
Manufacturer TE Connectivity
Catalog Custom Parts (0 - A)
Description Conn Drawer Connector PL 4Power/8Signal POS ST Panel Mount 12 Terminal 1 Port Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector System Wire-to-Board
Connector Type Connector, Plug
Contact Current Rating 15 A
Contact Plating Gold
Current Rating 15 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Height 19 mm
Housing Color Black
Housing Material Thermoplastic
Lead Free Not Applicable
Length 55.98 mm
Mating Retention Without
Max Operating Temperature 105 °C
Min Operating Temperature -30 °C
Mount Panel
Number of Columns 6
Number of Contacts 12
Number of Positions 12
Number of Power Positions 4
Number of Rows 2
Number of Signal Positions 8
Operating Supply Voltage 250 V
Orientation Straight
PCB Mounting Orientation Vertical
Pitch 2.0066 mm
Radiation Hardening No
RoHS Compliant
Row Spacing 8.05 mm
Sealable No
Termination IDC
Win Source Part Number 1121264-292182-8
Categories Custom Parts
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 292182-8 CAD Model

Description

The 292182-8 is a connector plug manufactured by TE Connectivity.

  • Positions: 12
  • Pitch: 2.0066 mm
  • Color: Black
  • Rows: 2
  • Row Spacing: 8.05 mm
  • Termination: IDC
  • Current Rating: 15 A
  • Gender: Male
  • Length: 55.98 mm
  • Housing Material: Thermoplastic
  • Contact Plating: Gold
  • Application: Wire-to-Board
  • Maximum Operating Temperature: 105 °C
  • Supply/Demand Status: Limited
  • RoHS Compliant: Yes
