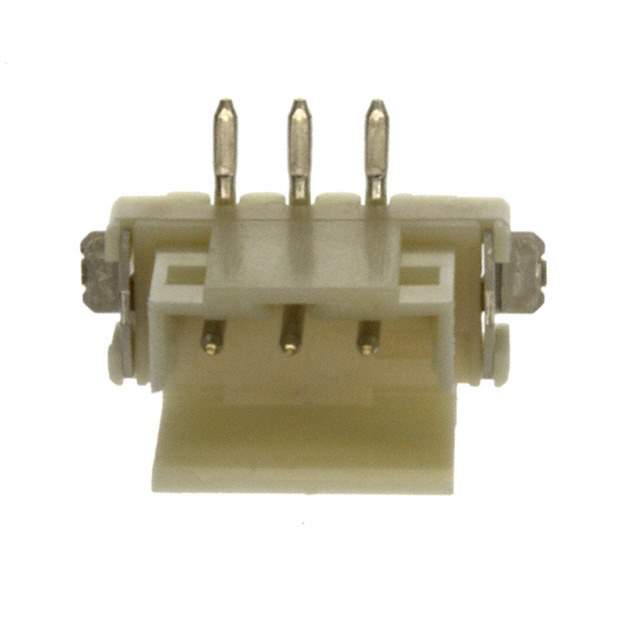

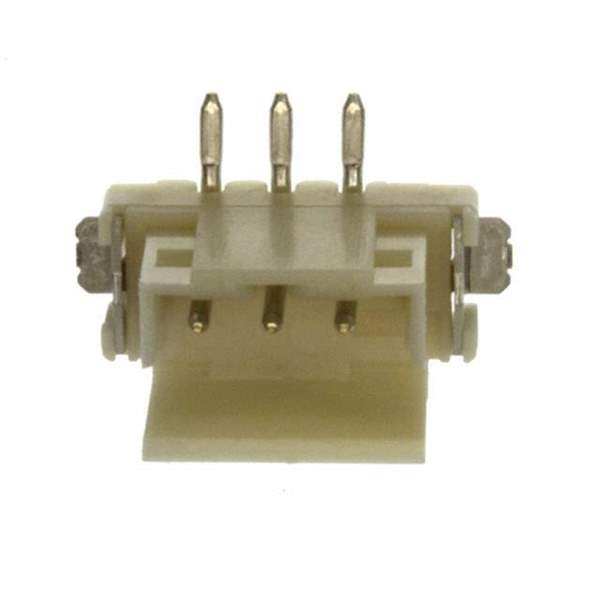

Same model may have multiple batches, images only for reference.

292174-3

Name: 292174-3
Brand: TE Connectivity
SKU: 1187689
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	292174-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 2MM / Connector Header Surface Mount 3 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	CT
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.177" (4.50mm)
Insulation Height	0.307" (7.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Board Guide, Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	125VAC
Applications	General Purpose
Base Product Number	292174
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2921743,-292174-3-SI,A98633CT,A98633DKR,A98633TR
Standard Package	700
Win Source Part Number	1187689-292174-3
Ultra Librarian 3D Model	Ultra Librarian 292174-3 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors CT series header is a male pin connector that is used in various electronic applications.

Series: CT
Connector Type: Header
Contact Type: Male Pin
Positions: Three
Features: Board Guide, Solder Retention
Fastening Type: Detent Lock
Packaging: Tape and Reel
Voltage Rating: 125VAC
Application: General Purpose
MSL Level: 1 (Unlimited)
Current Rating: Varies by Wire Gauge
REACH Status: Vendor Undefined
HTSUS Code: 8536.69.4040
