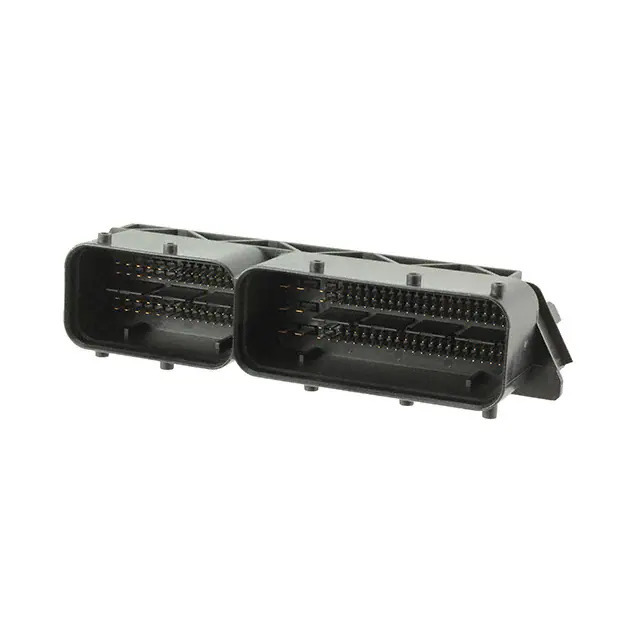

284617-1 TE Connectivity
Same model may have multiple batches, images only for reference.

284617-1

Part No 284617-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 154POS / Connector Header Panel Mount, Through Hole, Right Angle 154 (120 + 34 Power) position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Blade; Male Pin
Pitch - Mating -
Number of Positions 154 (120 + 34 Power)
Number of Rows -
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type -
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height -
Contact Shape -
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material -
Insulation Material -
Features Board Guide, Board Lock
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 284617
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355347-284617-1
Ultra Librarian 3D Model Ultra Librarian 284617-1 CAD Model

Description

The TE Connectivity AMP Connectors 284617 is a male pin header connector that is part of the rectangular connectors category.

  • Category: Rectangular Connectors
  • Temperature Range: -40°C ~ 125°C
  • Automotive: Yes
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Features: Shrouded, 4 Walls
  • Number of Positions: 154
  • Positions - Loaded: All
  • Positions - Regular: 120
  • Positions - Power: 34
  • Contact Finish: Tin
  • Insulation Color: Black
  • Lifecycle Status: Active
  • Connector Type: Header, Male Pins
  • Connection Type: Board to Cable/Wire
