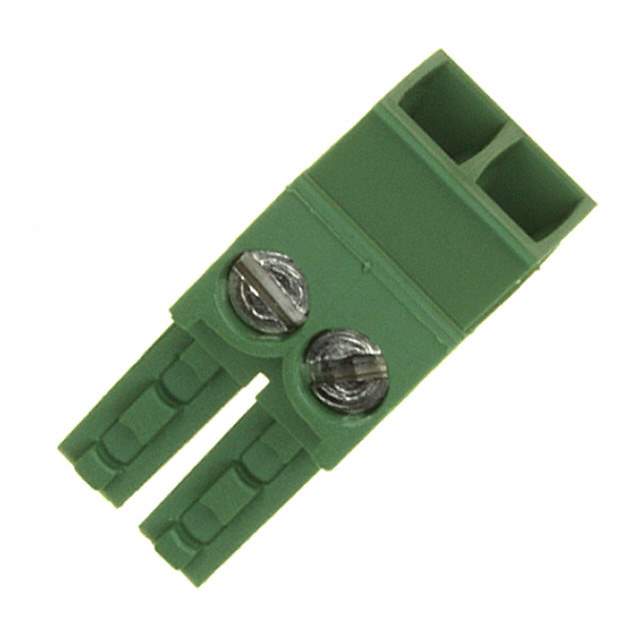

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.138" (3.50mm)
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Style Free Hanging (In-Line)
Current - UL 11A
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge or Range - mm2 0.05-2mm2
Color Green
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Features Side Stacking
Material Flammability Rating UL94 V-0
Screw Size M2
Torque - Screw 0.31 Nm (2.7 Lb-In)
Wire Strip Length 5-6mm
Contact Material Phosphor Bronze
Dielectric Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.437" (11.10mm)
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1123482-284506-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 284506-2 CAD Model

Description

The TE Connectivity AMP Connectors 1123482-284506-2 is a female socket plug connector with a screw-rising cage clamp termination style.

  • Manufacturer: TE Connectivity AMP Connectors
  • Termination Style: Screw-rising cage clamp
  • Pitch: 0.138" (3.50mm)
  • Wire Gauge: 14-30 AWG or 0.05-2mm2
  • Current Rating (UL): 11A
  • Voltage Rating (UL): 300V
  • Contact Material: Phosphor bronze
  • Dielectric Material: Polyamide (PA66), nylon 6/6
  • Flammability Rating: UL94 V-0
  • Color: Green
  • Features: Side stacking
  • Temperature Range: -40°C to 110°C
  • Common Applications: Industrial applications
  • Pack Quantity: 300
