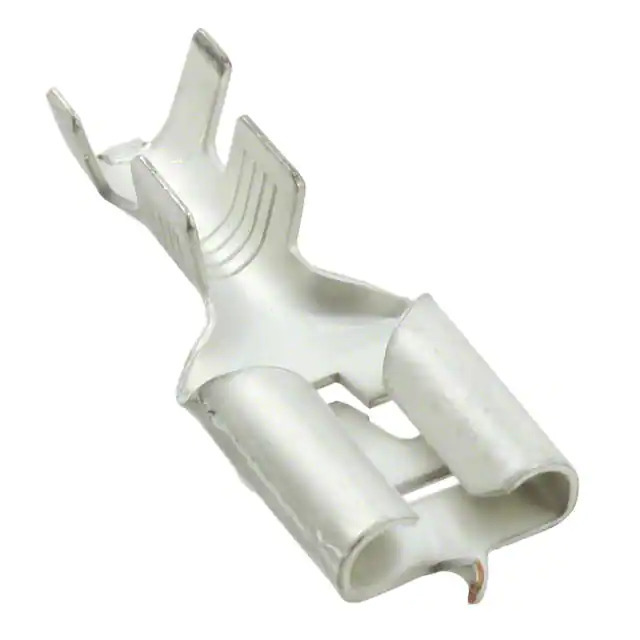

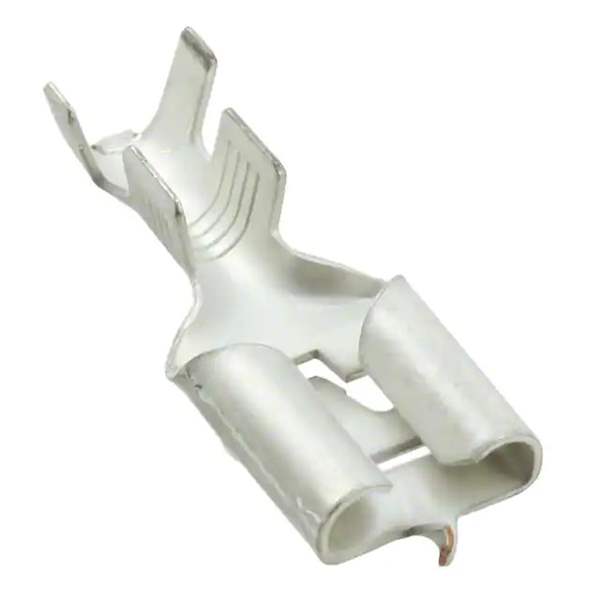

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.375" (9.53mm)
Tab Thickness 0.047" (1.19mm)
Tab Length -
Length - Overall 1.102" (27.99mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.134" ~ 0.201" (3.40mm ~ 5.10mm)
Base Product Number 280756
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364796-280756-4
Ultra Librarian 3D Model Ultra Librarian 280756-4 CAD Model

Description

The TE Connectivity AMP Connectors 280756-4 is a Quick Disconnect Connector from the Fastin-Faston series.

  • Series: Fastin-Faston
  • Application: Connectors, Interconnects, and Terminals
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 10-12 AWG
  • Contact Finish: Tin
  • Insulated: No
  • Length: 1.102" (27.99mm)
  • Tab Width: 0.375" (9.53mm)
  • Tab Thickness: 0.047" (1.19mm)
  • Insulation Diameter: 0.134" to 0.201" (3.40mm to 5.10mm)
  • Lifecycle Status: Active
