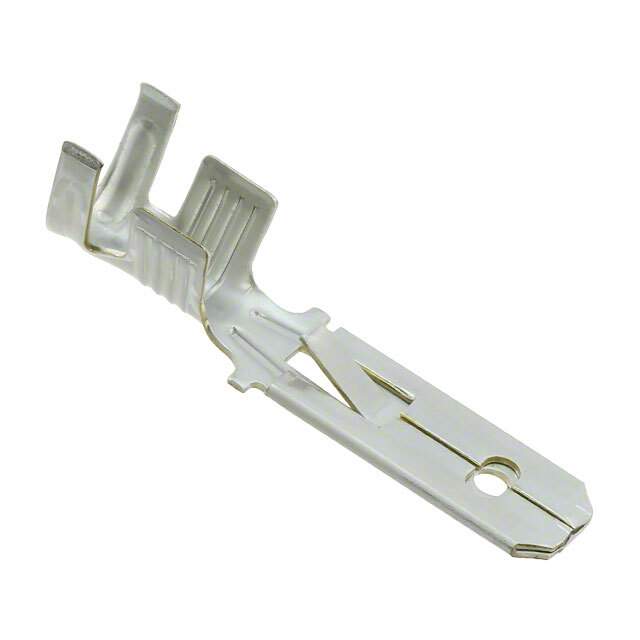

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.618" (15.70mm)
Length - Overall 1.102" (27.99mm)
Termination Crimp
Wire Gauge 10-11.5 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.134" ~ 0.205" (3.40mm ~ 5.21mm)
Base Product Number 280080
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 280080-2-ND,2800802,A105455TR,-280080-2-SI,A105455CT
Standard Package 2,500
Win Source Part Number 1333753-280080-2
Ultra Librarian 3D Model Ultra Librarian 280080-2 CAD Model

Description

The TE Connectivity AMP Connectors Quick Connect Terminal is a male terminal with a tin contact finish and a wire gauge of 10-11.5 AWG.

  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.618 inches (15.70mm)
  • Insulation Diameter: 0.134 inches to 0.205 inches (3.40mm to 5.21mm)
  • Mounting Style: Through-Hole
  • Application: Free-Hanging (In-Line)
