Same model may have multiple batches, images only for reference.

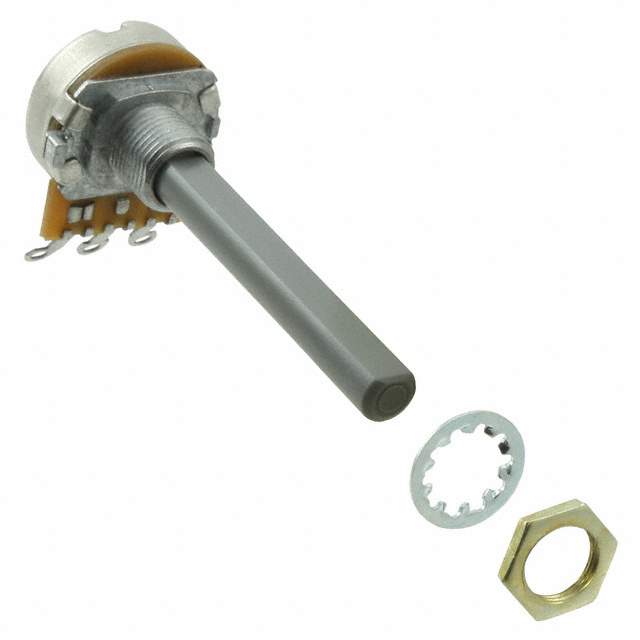

23ESB103MMF50NF Real Image
Same model may have multiple batches, images only for reference.

23ESB103MMF50NF

Part No 23ESB103MMF50NF
Manufacturer TE Connectivity
Catalog Potentiometers, Variable Resistors
Description POT 10K OHM 1/5W CARBON LOG  /  10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer None 1.0 Kierros Carbon 0.2W, 1/5W Solder Lug
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr TE Connectivity Passive Product
Series 23, Citec
Package Bulk
Resistance (Ohms) 10k
Tolerance ±20%
Power (Watts) 0.2W, 1/5W
Built in Switch None
Number of Turns 1
Taper Logarithmic
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient 5%
Rotation 300°
Resistive Material Carbon
Termination Style Solder Lug
Actuator Type Flatted
Actuator Length 1.969" (50.00mm)
Actuator Diameter 0.250" (6.35mm)
Mounting Type Panel Mount
Size - Body Rectangular - 0.992" x 0.717" Face (25.20mm x 18.20mm)
Base Product Number 23ESB
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.40.8070
Other Names 1624151-2-ND,1624151-2,16241512,A105787
Standard Package 200
Win Source Part Number 1124796-23ESB103MMF50NF
Ultra Librarian 3D Model Ultra Librarian 23ESB103MMF50NF CAD Model

Description

The 23ESB103MMF50NF is a rotary potentiometer from the 23 series manufactured by Citec.

  • Resistance: 10k Ohms
  • Tolerance: ±20%
  • Temperature Coefficient: 5%
  • Power Rating: 0.2W
  • Actuator Type: Flatted
  • Actuator Length: 1.969 inches
  • Taper: Logarithmic
  • Gang: Single
  • Built-in Switch: No
  • Rotation: 300°
  • Actuator Diameter: 0.250 inches
  • Body Shape: Rectangular
  • Body Dimensions: 0.992 x 0.717 inches
  • Mounting: Panel Mounted
