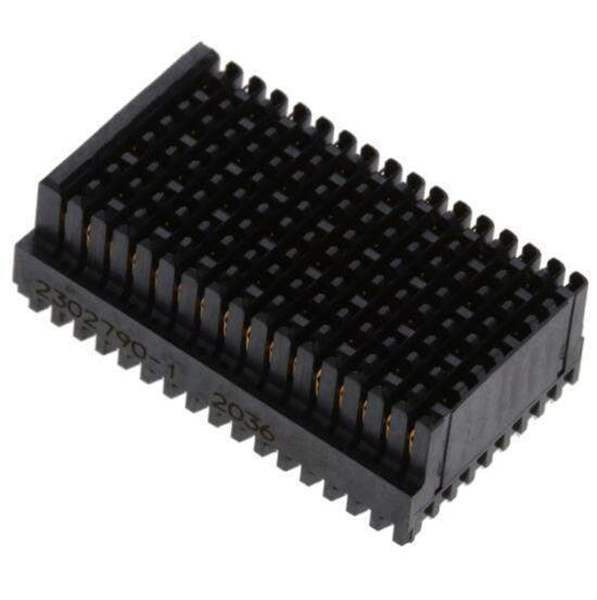

2302790-1

Part No 2302790-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description VERTRECASSYRIGHTENDMULTIGIG RT3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects Backplane Connectors Specialized
Series MULTIGIG RT 3
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Receptacle, Female Blade Sockets
Connector Style VITA 46, Right End
Number of Positions 144
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Win Source Part Number WS1207092-2302790-1
Ultra Librarian 3D Model Ultra Librarian 2302790-1 CAD Model

Description

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
