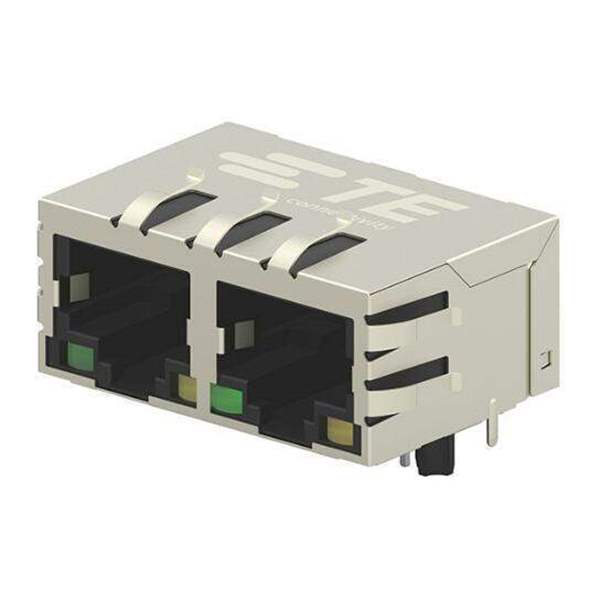

2301996-8 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2301996-8

Part No 2301996-8
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN JACK 2PORT 1000 BASE-T PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
Win Source Part Number WS1207088-2301996-8
Ultra Librarian 3D Model Ultra Librarian 2301996-8 CAD Model

Description

This specification covers the requirements for application of RJ45 Jack with integrated Magnetics designed to be mounted to a Printed Circuit Board (PCB). The Jacks are available in low-profile, vertical, single-port or multi-port configuration in 6, 8, 10 or 12 positions with 8 contacts, shielded designs to accommodate specific application requirements. This specification pertains to all shielded jacks with right-angled (R/A) and vertical orientation, with single or multiple ports.
