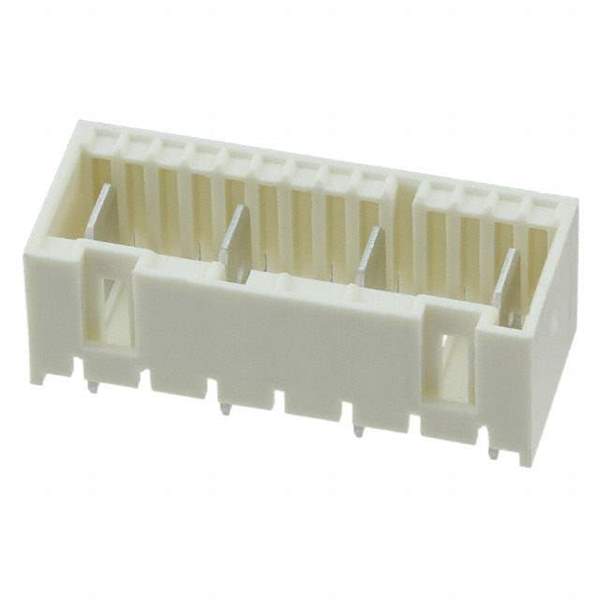

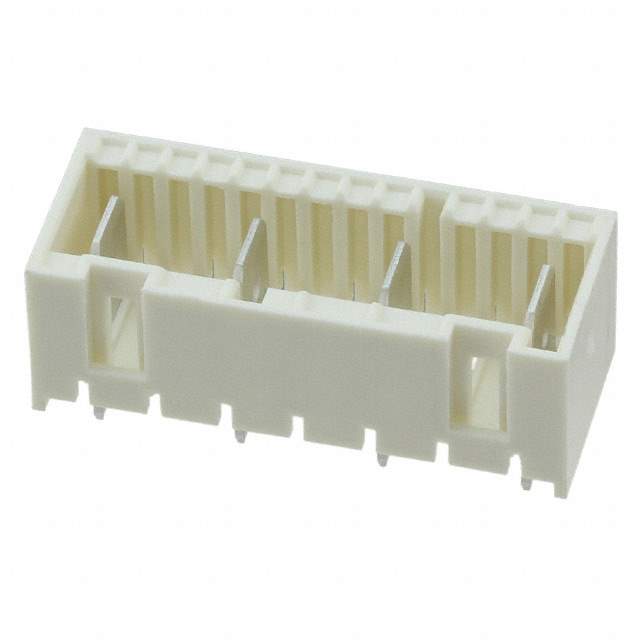

2232511-7 Real Image1 2232511-7 Real Image2
Same model may have multiple batches, images only for reference.
2232511-7 Real Image1 2232511-7 Real Image2
2232511-7 Real Image1 2232511-7 Real Image2
Same model may have multiple batches, images only for reference.

2232511-7

Part No 2232511-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 7POS 5MM / Connector Header Through Hole 7 position 0.197" (5.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr TE Connectivity
Series -
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded 4
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length -
Insulation Height 0.504" (12.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material -
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Glow Wire Compliant
Temperature Range - Operating -40°C ~ 120°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 2232511
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1380676-2232511-7
Ultra Librarian 3D Model Ultra Librarian 2232511-7 CAD Model

Description

The 1197813 is a male pin header connector designed for general-purpose applications. It features a 7-position configuration with 4 loaded positions.

  • Number of Positions: 7
  • Number of Positions Loaded: 4
  • Voltage Rating: 250VAC
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Glow Wire Flammability Rating: Glow Wire Compliant
  • Flammability Rating: UL94 V-0
  • Header Orientation: Shrouded with 4 Walls
  • Contact Shape: Rectangular
  • Pitch: 0.197" (5.00mm)
  • Operating Temperature: -40°C ~ 120°C
  • Insulation Material: Polyamide (PA), Nylon
  • Manufacturer: TE Connectivity
