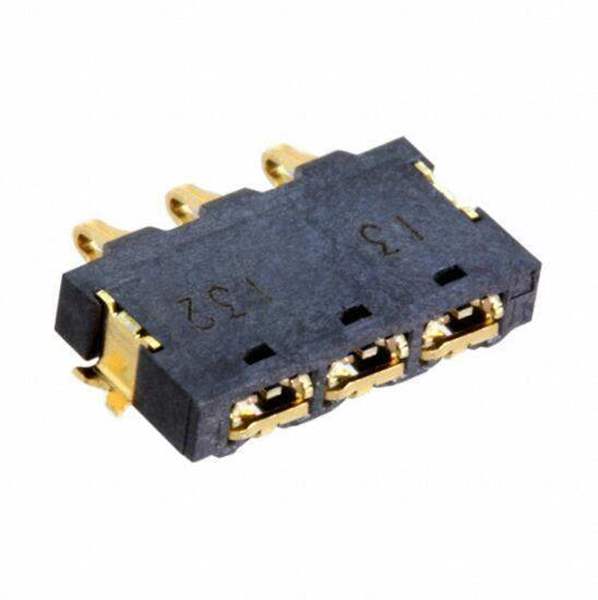

2229056-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2229056-1

Part No 2229056-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SPRING BATTERY 3POS R/A SMD
Datasheet
2229056-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Spring Loaded
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Connector Type Battery Contact
Pitch 0.098" (2.50mm)
Mounting Type Surface Mount, Right Angle
Material Copper Alloy
Contact Finish Gold
Win Source Part Number WS1207018-2229056-1
Ultra Librarian 3D Model Ultra Librarian 2229056-1 CAD Model

Description

3 Position Spring Battery Contact Connector Surface Mount, Right Angle
