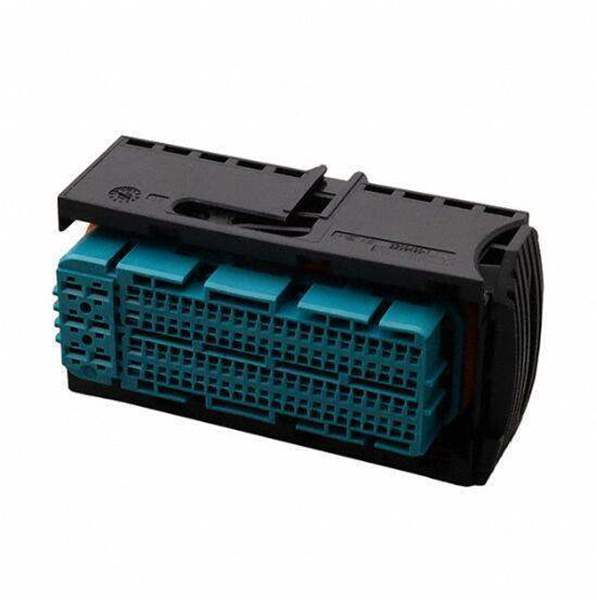

2209545-9 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2209545-9

Part No 2209545-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 94POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Series Micro Quadlok
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 94
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Win Source Part Number WS1207005-2209545-9
Ultra Librarian 3D Model Ultra Librarian 2209545-9 CAD Model

Description

94 Rectangular Connectors - Housings Receptacle Black
