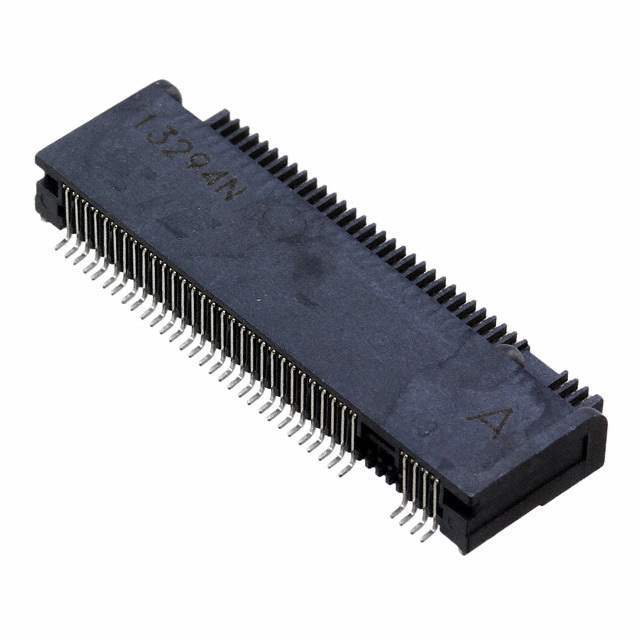

2199119-8 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2199119-8

Part No 2199119-8
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201364-2199119-8
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Card Edge Connectors -Edgeboard Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Card Type M.2 (NGFF) Mini Card
Gender Female
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian 2199119-8 CAD Model

Description

The M.2 (NGFF) Mini Card Edge Connector is a connector from TE Connectivity AMP Connectors.

  • Connector Type: Card Edge
  • Pitch: 0.020" (0.50mm)
  • Features: Board guide
  • Package: Tape and reel or cut tape
  • Gender: Female
  • Readout: Dual
  • Mounting: Surface Mount, Right Angle
  • Product Status: Active
