Same model may have multiple batches, images only for reference.

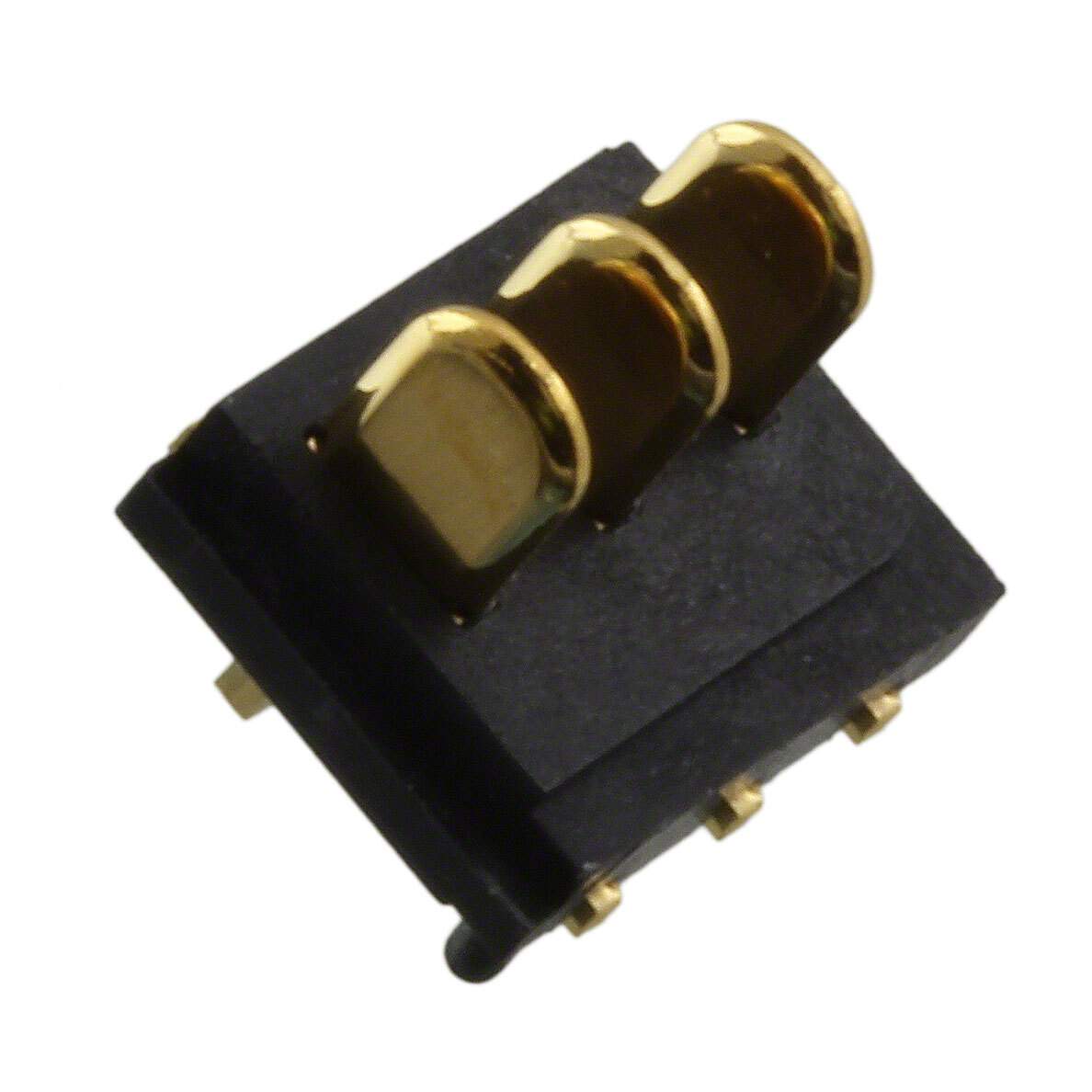

2199011-1 Real Image
Same model may have multiple batches, images only for reference.

2199011-1

Part No 2199011-1
Manufacturer TE Connectivity
Catalog Blade Type Power Connectors
Description BATTERY BLOCK CONN. PLUG ASSY / 3 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Blade Type Power Connectors
Mfr TE Connectivity AMP Connectors
Package Tube
Connector Style Battery
Connector Type Header, Male Blades
Number of Positions 3
Pitch 0.079" (2.00mm)
Mounting Type Through Hole
Number of Rows 1
Termination Solder
Features Board Guide
Color Black
Fastening Type Push-Pull
Contact Material Copper Alloy
Contact Finish Gold
Voltage Rating 30 V
Current Rating (Amps) 2 A
Material - Insulation Thermoplastic
Temperature Range - Operating -20°C ~ 80°C
Base Product Number 2199011
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2199011-1-SI,A120576
Standard Package 75
Win Source Part Number 1216656-2199011-1
Ultra Librarian 3D Model Ultra Librarian 2199011-1 CAD Model

Description

The TE Connectivity AMP Connectors 1216656-2199011-1 is a high-quality blade type power connector that is widely used in various electronic devices.

  • Feature: High current rating and a low contact resistance
  • Ideal for: High-power applications
  • Design: To operate @ high temperatures
  • Suitable for: Use in harsh environments
  • Package: Through-hole
  • Popularity: High
