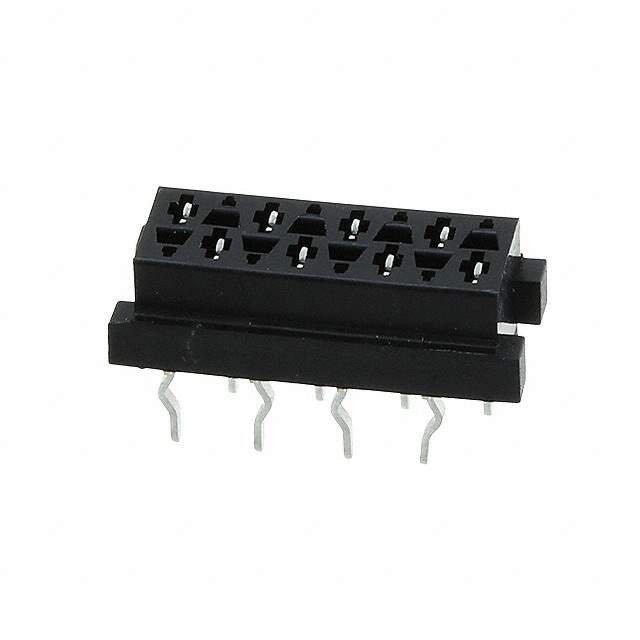

2178710-8 Real Image1 2178710-8 Real Image2
Same model may have multiple batches, images only for reference.
2178710-8 Real Image1 2178710-8 Real Image2
2178710-8 Real Image1 2178710-8 Real Image2
Same model may have multiple batches, images only for reference.

2178710-8

Part No 2178710-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.1 TIN PCB / 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Insulation Color Black
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating -
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) -
Voltage Rating 100VDC
Applications General Purpose, Telecommunications
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape -
Contact Material Brass
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 2178710
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 2,500 pcs
Win Source Part Number 1380671-2178710-8
Ultra Librarian 3D Model Ultra Librarian 2178710-8 CAD Model

Description

The Micro-MaTch series 8-position female receptacle connector is a reliable and versatile component for various electronic applications. With a connector type of receptacle and contact type of forked, this connector provides a secure and stable connection.

  • Connector Type: Receptacle
  • Contact Type: Forked
  • Number of Positions: 8
  • Contact Material: Brass
  • Board Side: Board to Board or Cable
  • Application: General Purpose, Telecommunications
  • Contact Finish: Tin
  • Contact Finish Thickness: 118.1µin (3.00µm)
  • Voltage Rating: 100VDC
  • Operating Temperature: -30°C ~ 85°C
  • Mounting Type: Through Hole
  • Row Spacing: 0.100" (2.54mm)
  • Package Quantity: 2,500 pcs
  • Series: Micro-MaTch
