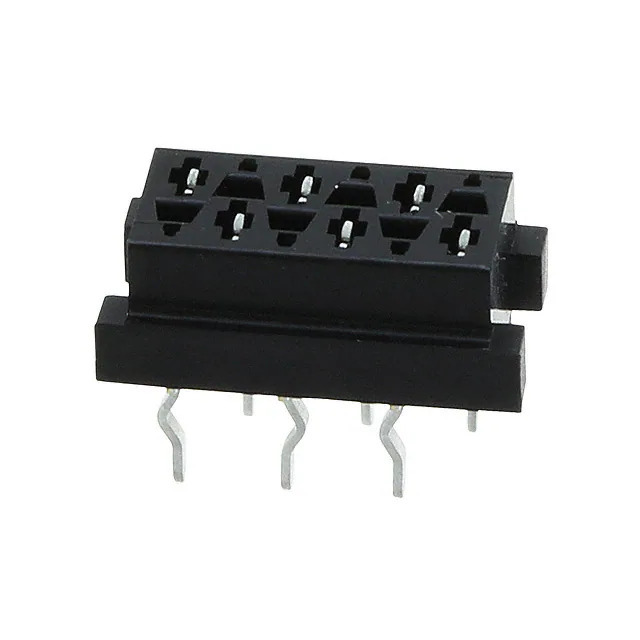

Same model may have multiple batches, images only for reference.

2178710-6

Name: 2178710-6
Brand: TE Connectivity
SKU: 1377409
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	2178710-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.1 TIN PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity AMP Connectors
Series	Micro-MaTch
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Insulation Color	Black
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	-
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	-
Voltage Rating	100VDC
Applications	General Purpose, Telecommunications
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	-
Contact Material	Brass
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	2178710
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377409-2178710-6
Ultra Librarian 3D Model	Ultra Librarian 2178710-6 CAD Model

Alternative Products

Description

The Micro-MaTch series from TE Connectivity AMP Connectors is a range of headers, receptacles, and female sockets for board-to-board or cable connections.

Pitch: 0.100" (2.54mm)
Applications: General Purpose, Telecommunications
Current Rating: Varies depending on the specific model
Mounting Type: Through Hole
Fastening Type: Push-Pull
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94V-0
Color: Black
Voltage Rating: 100VDC
