Same model may have multiple batches, images only for reference.

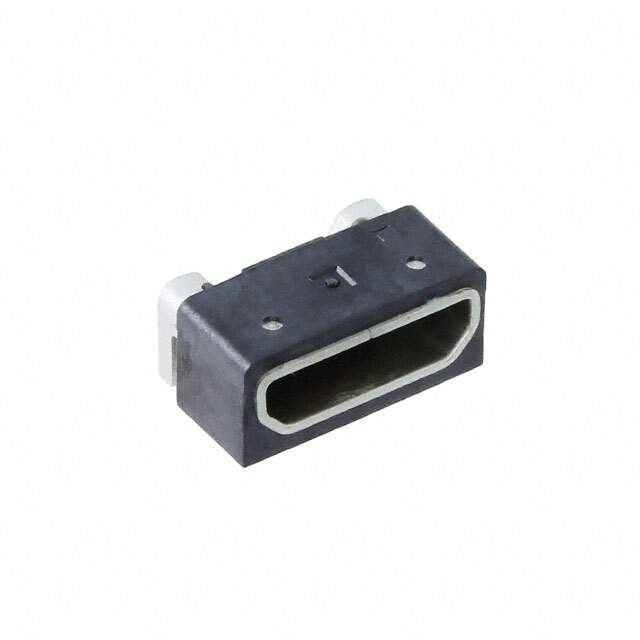

2173157-3 Real Image
Same model may have multiple batches, images only for reference.

2173157-3

Part No 2173157-3
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A / USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Ingress Protection Splash Proof
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A, 1A, 1.8A
Voltage - Rated 30V
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Base Product Number 2173157
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A124356TR,A124356CT,-2173157-3-SI,-2173157-3-CSI,2266-2173157-3TR
Standard Package 1,000
Win Source Part Number 1333969-2173157-3
Ultra Librarian 3D Model Ultra Librarian 2173157-3 CAD Model

Description

The 1333969-2173157-3 is a USB connector assembly manufactured by TE Connectivity AMP Connectors.

  • Packaging: Reel-TR
  • Features: Pick and place and solder retention
  • Connector Type: USB-micro B
  • Termination: Solder
  • Contact Finish: Gold
  • Contacts: 5
  • Gender: Receptacle
  • Specification: USB 2.0
  • Ingress Protection: Splash-proof
  • Shielded: Shielded
  • Ports: 1
  • Standard Package: 1,000
  • Mounting Type: Surface Mount, Right-Angle
  • Rated Voltage: 30V
  • Mounting Feature: Horizontal
  • Mating Cycle: 10,000
  • Temperature Range: -30°C to 85°C
  • Shell/Shielding Material: Steel and Stainless
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.5A, 1A, and 1.8A
  • HTSUS: 8536.69.4040
  • ROHS3: Compliant
