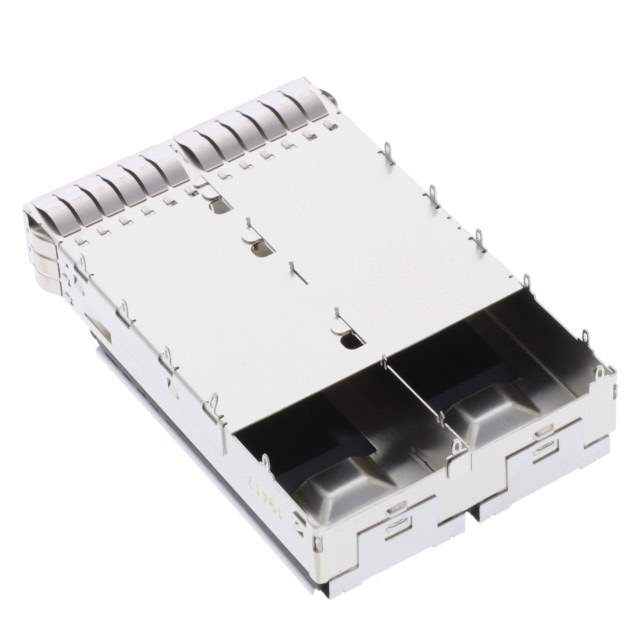

2170806-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Style Cage, Ganged (1 x 2) with Heat Sink
Connector Type QSFP28
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Base Product Number 2170806
Standard Package 15
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1348436-2170806-1
Ultra Librarian 3D Model Ultra Librarian 2170806-1 CAD Model

Description

The TE Connectivity AMP Connectors is a pluggable connector assembly that is designed to provide reliable performance.

  • Manufacturer: TE Connectivity AMP Connectors
  • Component Type: Pluggable Connector Assembly
  • Popularity: Medium
