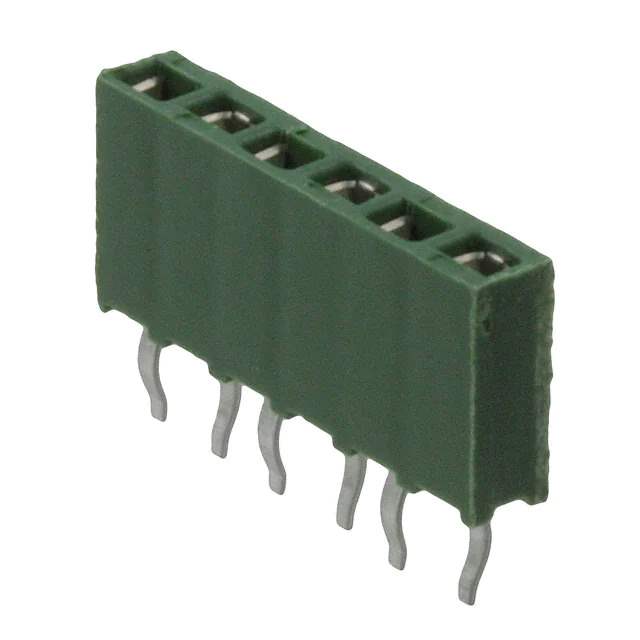

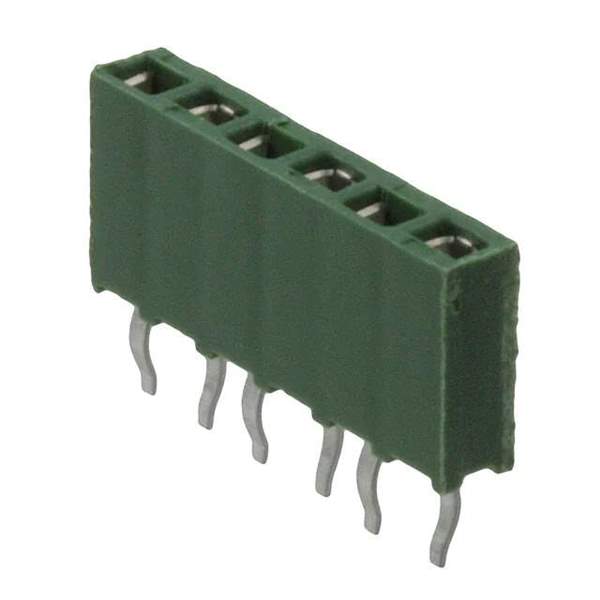

215297-6 Real Image
Same model may have multiple batches, images only for reference.

215297-6

Part No 215297-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 6POS 0.1 GOLD PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series AMPMODU HV-100
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5µin (0.80µm)
Insulation Color Black or Green
Insulation Height 0.276" (7.00mm)
Contact Length - Post 0.122" (3.10mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 215297
Standard Package 120 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850081-215297-6
Ultra Librarian 3D Model Ultra Librarian 215297-6 CAD Model

Description

The AMPMODU HV-100 series is a collection of rectangular connectors designed for headers, receptacles, and female sockets. Bold: AMPMODU HV-100 series and TE Connectivity.

  • Type: 6-Position Receptacle
  • Fastening Type: Push-Pull
  • Termination: Kinked Pin and Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 31.5µin (0.80µm)
  • Application: Board-to-Board
  • Pitch: 0.100" (2.54mm)
  • Flammability Rating: UL94 V-0
  • Standard Package: 120 pieces
  • Application: General Purpose
  • Voltage Rating: Not Specified
  • Insulation Material: Polyester, Glass Filled
  • Insulation Color: Black or Green
  • Product Status: Active
  • ECCN: EAR99
