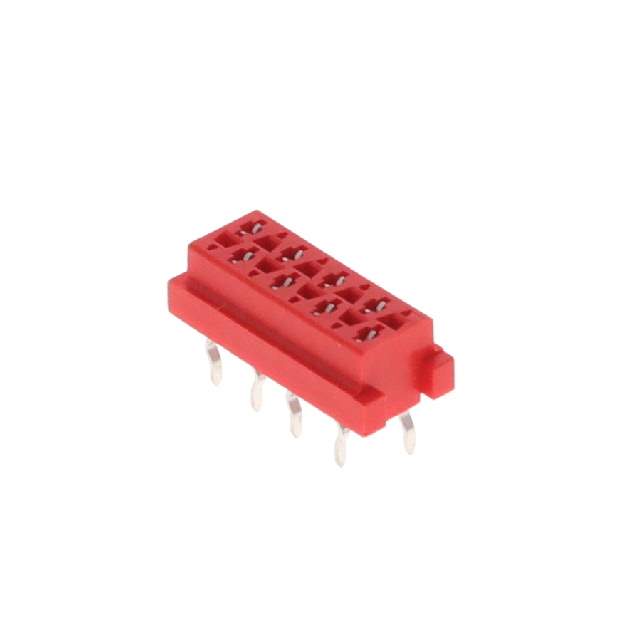

Same model may have multiple batches, images only for reference.

215079-8

Name: 215079-8
Brand: TE Connectivity
SKU: 1333297
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	215079-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.1 TIN PCB / 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	215079
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	215079-8-ND,A105450CT,-215079-8-CSI,A105450TR,-215079-8-SI,2150798,-215079-8-LSI
Standard Package	12,500
Win Source Part Number	1333297-215079-8
Ultra Librarian 3D Model	Ultra Librarian 215079-8 CAD Model

Description

The TE Connectivity AMP Connectors 1333297-215079-8 is an 8-position female socket connector with a forked contact type.

Applications: Automotive and General Purpose
Mounting Style: Through-Hole
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Material: Polybutylene Terephthalate (PBT), Polyester, and Glass Filled
Temperature Range: -40°C to 105°C
ROHS3 Compliant: True
Package: Reel
Standard Package: 12,500
