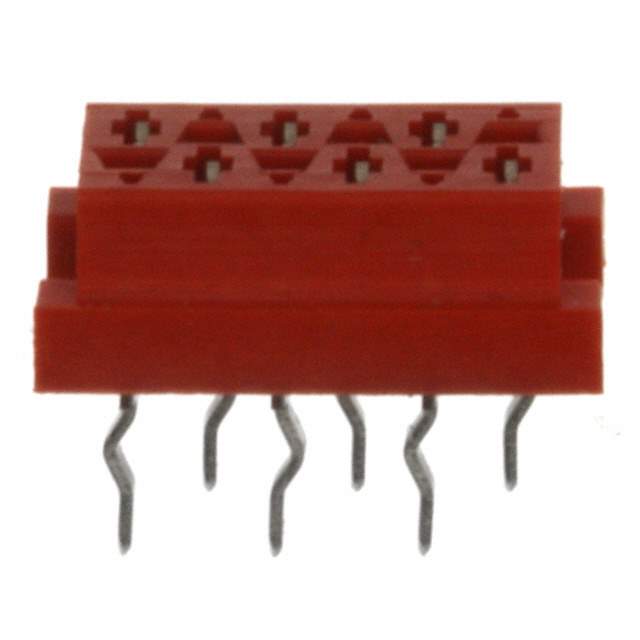

Same model may have multiple batches, images only for reference.

215079-6

Name: 215079-6
Brand: TE Connectivity
SKU: 1002676
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	215079-6
Manufacturer	TE Connectivity
Catalog	Rectangular - Board to Board Connectors
Description	CONN RCPT 6POS 0.1 TIN PCB / 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity AMP Connectors
Series	Micro-MaTch
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	215079
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	A105004CT,-215079-6-LSI,-215079-6-SI,215079-6-ND,-215079-6-CSI,A105004DKRINACTIVE,A105004DKR,A105004DKR-ND,2150796,A105004TR
Standard Package	2,500
Win Source Part Number	1002676-215079-6
Ultra Librarian 3D Model	Ultra Librarian 215079-6 CAD Model

Description

The Micro-MaTch connector series is a rectangular connector that is suitable for board to board or cable applications.

Connector Series: Micro-MaTch
Contact Type: forked
Contact Material: phosphor bronze
Contact Finish: tin
Pitch: 0.100" (2.54mm)
Row Spacing: 0.100" (2.54mm)
Voltage Rating: 100VDC
Temperature Range: -40°C to 105°C
Mounting Type: through hole
Fastening Type: push-pull
Material Flammability Rating: UL94 V-0
Package: tape & reel (TR) and cut tape (CT)
