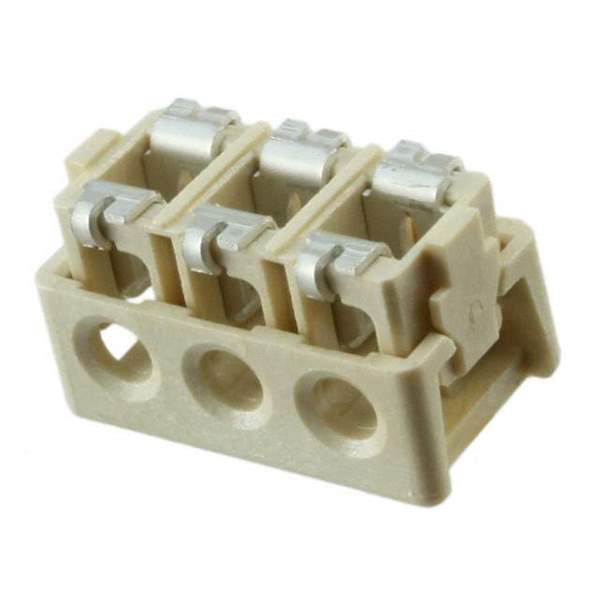

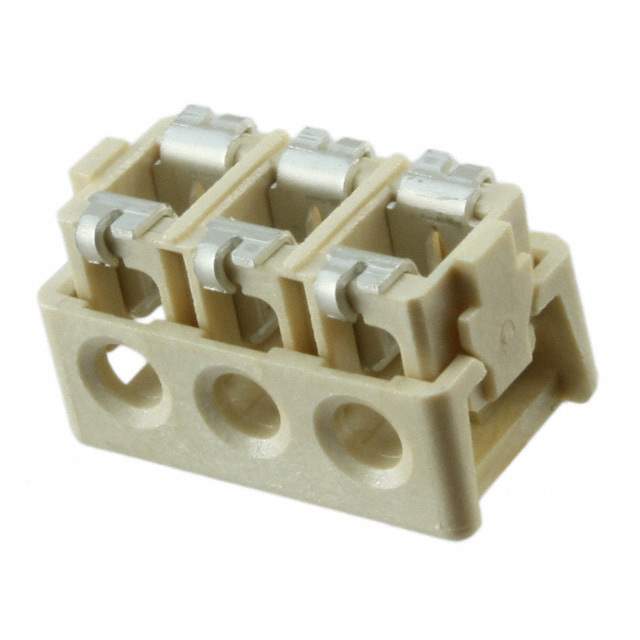

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Board In, Direct Wire to Board
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Connector Type Individual Wires
Number of Positions 3
Cable Pitch 0.157" (4.00mm)
Board-Side Pitch 0.157" (4.00mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Cable Termination IDC
Wire Gauge 18 AWG
Features Feed Through
Contact Finish Tin
Color Natural
Number of Positions Loaded All
Base Product Number 2106431
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 21064313,A100363DKR,-2106431-3-SI,A100363CT,A100363TR
Standard Package 450
Win Source Part Number 1180667-2106431-3
Ultra Librarian 3D Model Ultra Librarian 2106431-3 CAD Model

Description

The 1180667-2106431-3 rectangular connector is a high-quality electronic component manufactured by TE Connectivity AMP Connectors. 1180667-2106431-3 is from TE Connectivity AMP Connectors.

  • Applications: board in, direct wire to board, and individual wires
  • Color: natural
  • Feature: feed-through
  • Number of Positions Loaded: all
  • Number of Positions: 3
  • Cable Termination: IDC
  • Wire Gauge: 18 AWG
  • Package Type: tape and reel
  • Cable Pitch and Board-Side Pitch: 0.157" (4.00mm)
  • Mounting Type: surface mount, right-angle
  • Contact Finish: tin
  • ECCN: EAR99
