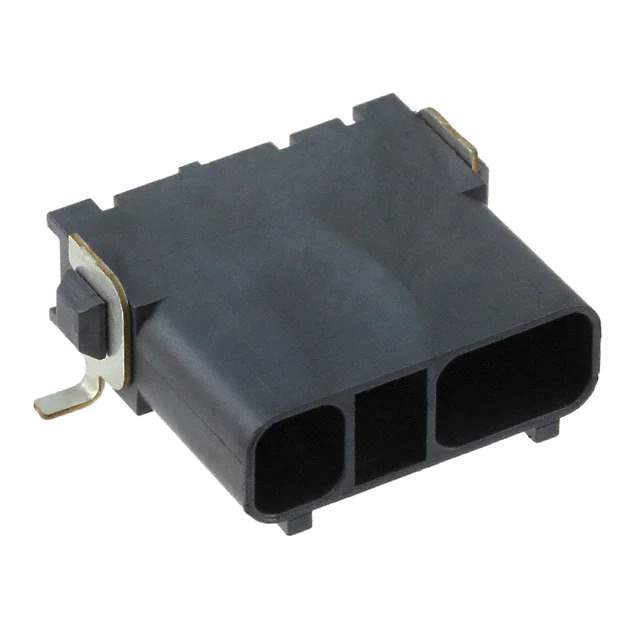

2106056-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr TE Connectivity
Series SlimSeal
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Style Board to Cable/Wire
Connector Type Header, Male Pins
Number of Positions 3
Mounting Type Surface Mount, Right Angle
Termination Solder
Pitch 0.138" (3.50mm)
Fastening Type Latch Lock
Features Solder Retention
Housing Color Black
Contact Material Brass
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 400V
Current Rating (Amps) 3.5A (22-24AWG); 5A (18-20 AWG)
Ingress Protection IP67 - Dust Tight, Waterproof
Mating Cycles 30
Base Product Number 2106056
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 843051-2106056-5
Ultra Librarian 3D Model Ultra Librarian 2106056-5 CAD Model

Description

The TE Connectivity 843051-2106056-5 is a solid state lighting connector assembly that belongs to the SlimSeal series.

  • Positions: 3
  • Pitch: 0.138" (3.50mm)
  • Features: Solder Retention
  • Connector Type: Header, Male Pins
  • Mounting: Surface Mount, Right Angle
  • Contact Finish: Tin
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Black
  • Ingress Protection: IP67
  • Standard Package: 250 pieces
  • Application: Board to Cable/Wire
  • Mating Cycle: 30
  • Operating Temperature: -40°C to 105°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3.5A for 22-24AWG wire and 5A for 18-20AWG wire
  • REACH Status: Undefined by the Vendor
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Product Status: Active
