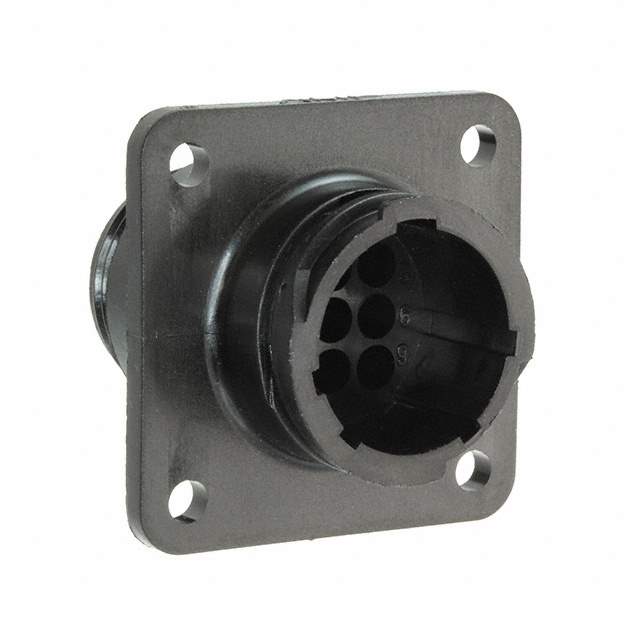

206705-1 Real Image
Same model may have multiple batches, images only for reference.

206705-1

Part No 206705-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 9POS PNL MNT / 9 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Shell Size - Insert 13-9
Contact Type Crimp
Contact Size 16
Mounting Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation A
Shell Material Polyamide (PA), Nylon
Housing Color Black
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206705
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -683370-000-CSI,-206705-1-CSI,-206705-1-SI,A1303,-683370-000-SI,2067051,-683370-000-SI-ND,-683370-000-CSI-ND
Standard Package 1
Win Source Part Number 1334598-206705-1
Ultra Librarian 3D Model Ultra Librarian 206705-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334598-206705-1 is a circular connector housing designed for male pins.

  • Manufacturer: TE Connectivity AMP Connectors
  • Positions: 9
  • Application: Receptacle Housing
  • Contact Type: Crimp
  • Fastening Type: Threaded
  • Contact Size: 16
  • Shielded: No
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: -
  • Mounting: Panel Mount
  • Mounting Feature: Flange
  • Shell Size-Insert: 13-9
  • Housing Color: Black
  • Orientation: A
  • Shell Material: Polyamide (PA), Nylon
  • Temperature Range: -55°C ~ 105°C
