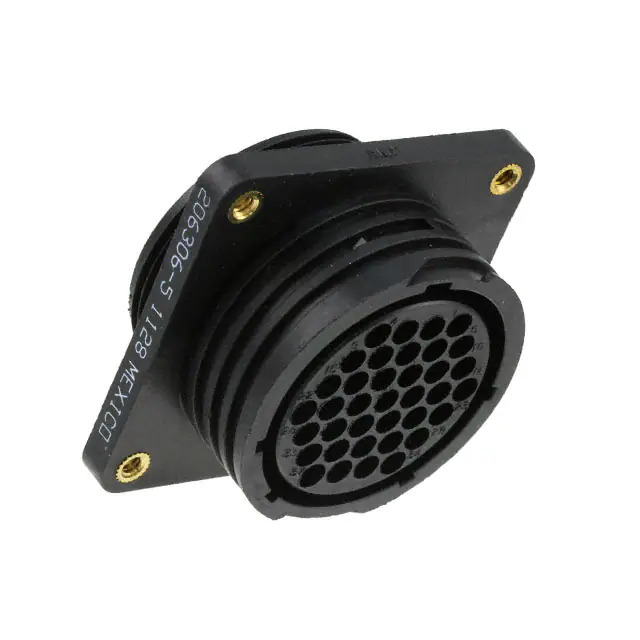

206306-5 TE Connectivity
Same model may have multiple batches, images only for reference.

206306-5

Part No 206306-5
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSG FMALE 37POS PNL MT / 37 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity AMP Connectors
Series CPC Series 1
Package Bulk
Product Status Active
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 37
Shell Size - Insert 23-37
Shell Size, MIL -
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation A
Shell Material Polyamide (PA), Nylon
Shell Finish -
Housing Color Black
Ingress Protection -
Material Flammability Rating UL94 V-0
Features -
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206306
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363717-206306-5
Ultra Librarian 3D Model Ultra Librarian 206306-5 CAD Model

Description

The TE Connectivity AMP Connectors CPC Series 1 receptacle housing is a circular connector housing designed for use with crimp contacts.

  • Temperature Range: -55°C to 105°C
  • Material: Polyamide (PA) and Nylon
  • Mounting Type: Panel Mount
  • Number of Positions: 37
  • Series: CPC Series 1
  • Fastening Type: Threaded
  • Shell Size - Insert: 23-37
  • Contact Size: 16
  • Product Status: Active
  • Packaging: Bulk
  • HTSUS Code: 8538.90.6000
  • ECCN: EAR99
