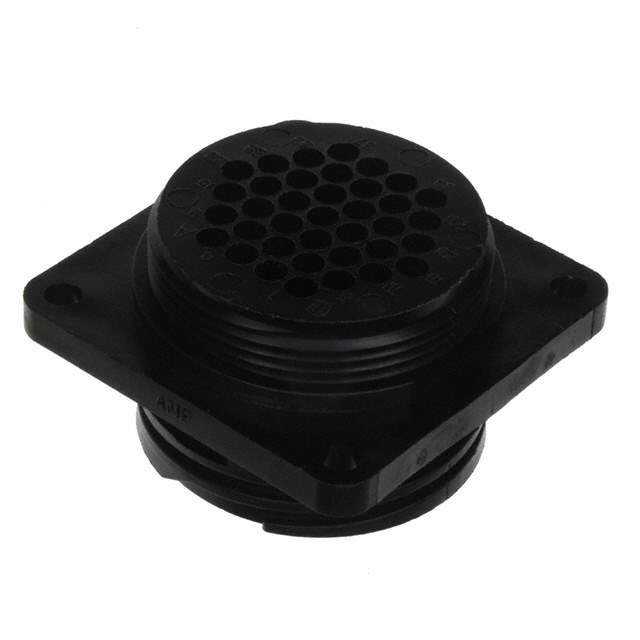

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 37
Shell Size - Insert 23-37
Contact Type Crimp
Contact Size 16
Mounting Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation A
Shell Material Polyamide (PA), Nylon
Housing Color Black
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206306
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 2063061,-206306-1-SI,-206306-1-CSI,A1364
Standard Package 1
Win Source Part Number 1334576-206306-1
Ultra Librarian 3D Model Ultra Librarian 206306-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334576-206306-1 circular connector housing is a high-quality and reliable component designed for use with female sockets.

  • Positions: 37
  • Connector Type: Receptacle Housing
  • Contact Type: Crimp
  • Contact Size: 16
  • Orientation: A
  • Housing Color: Black
  • Mounting: Panel Mount with Flange
  • Shell Size - Insert: 23-37
  • Temperature Range: -55°C ~ 105°C
