2-5748003-0 TE Connectivity
Same model may have multiple batches, images only for reference.

2-5748003-0

Part No 2-5748003-0
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

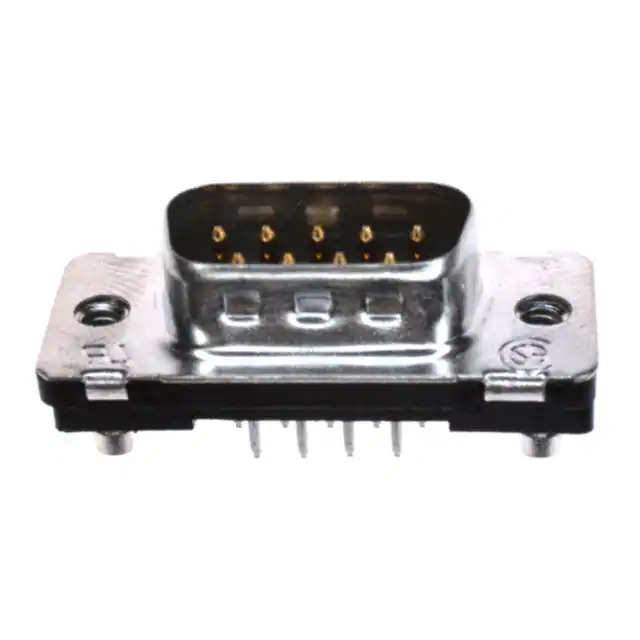

Description CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing -
Features Board Lock, Grounding Indents
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5748003
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365174-2-5748003-0
Ultra Librarian 3D Model Ultra Librarian 2-5748003-0 CAD Model

Description

The AMPLIMITE HD-20 D-Sub Connector Assembly is a reliable and versatile component for electrical connections from TE Connectivity AMP Connectors.

  • Current Rating: 6A
  • Temperature Range: -55°C to 105°C
  • Contact Finish: Gold
  • Connector Type: Plug
  • Gender: Male
  • Flange Feature: Housing/Shell Flange
  • Number of Positions: 9
  • Number of Rows: 2
  • Mounting Type: Through Hole
