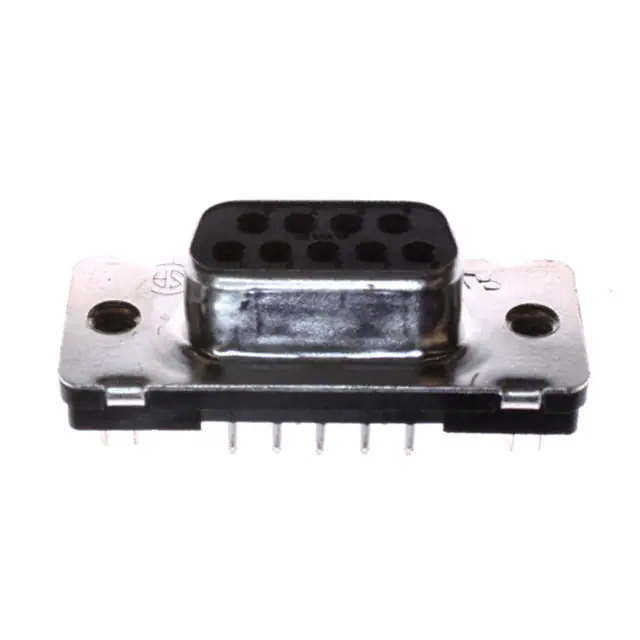

2-5747706-0 TE Connectivity
Same model may have multiple batches, images only for reference.

2-5747706-0

Part No 2-5747706-0
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing -
Features Board Lock
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747706
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365172-2-5747706-0
Ultra Librarian 3D Model Ultra Librarian 2-5747706-0 CAD Model

Description

The AMPLIMITE HD-20 D-Sub Connector Assembly is a reliable and versatile component for various electronic applications from TE Connectivity AMP Connectors.

  • Connector Type: Receptacle
  • Gender: Female
  • Number of Positions: 9
  • Number of Rows: 2
  • Current Rating: 6A
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Housing Material: Black Thermoplastic
  • Flange Feature: Housing/Shell (4-40)
  • Shell Size: 1 (DE, E)
  • Base Product Number: 5747706
  • Product Status: Active
