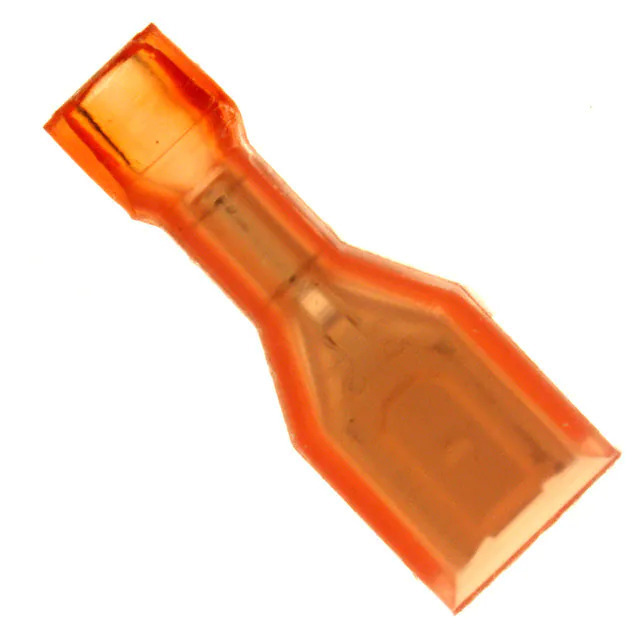

Same model may have multiple batches, images only for reference.

2-520411-2

Name: 2-520411-2
Brand: TE Connectivity
SKU: 1364712
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-520411-2
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 18-22AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Ultra-Fast Plus
Package	Bulk
Product Status	Active
Terminal Type	Standard
Gender	Female
Tab Width	0.187" (4.75mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	0.855" (21.72mm)
Termination	Crimp
Wire Gauge	18-22 AWG
Insulation	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	Red
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Base Product Number	520411
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364712-2-520411-2
Ultra Librarian 3D Model	Ultra Librarian 2-520411-2 CAD Model

Description

The TE Connectivity AMP Connectors Ultra-Fast Plus series is a reliable solution for quick connect and disconnect applications. This female quick disconnect connector is fully insulated and has a wire gauge range of 18-22 AWG.

Contact Finish: Tin
MSL Level: 1
Length: 0.855" (21.72mm)
Tab Width: 0.187" (4.75mm)
Mounting Type: Free Hanging (In-Line)
Color: Red
