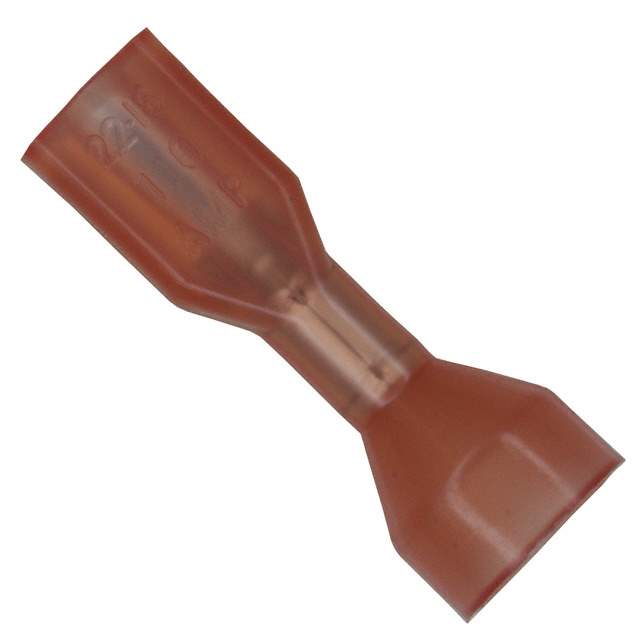

2-520310-2 Real Image
Same model may have multiple batches, images only for reference.

2-520310-2

Part No 2-520310-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.110 / 0.110" (2.79mm), 0.125" (3.18mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.865" (21.97mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.230" (5.84mm)
Base Product Number 520310
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 25203102,2266-2-520310-2TR,A27801,2-520310-2-ND,A27801TR,A27801-ND,-2-520310-2-SI,A27801CT
Standard Package 2,000
Win Source Part Number 1333477-2-520310-2
Ultra Librarian 3D Model Ultra Librarian 2-520310-2 CAD Model

Description

The TE Connectivity AMP Connectors are a high-quality manufacturer that produces a range of electronic components.

  • Part Number: 1333477-2-520310-2
  • Packaging: reel - TR
  • Color: red
  • Type: female quick connect
  • Termination: crimp
  • Contact Finish: tin
  • Wire Gauge: 18-22 AWG
  • Contact Material: brass
  • Insulation: fully insulated
  • Tab Width: 0.110" (2.79mm), 0.125" (3.18mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.230" (5.84mm)
  • Temperature Range: -40°C ~ 85°C
  • Standard Package: 2,000
