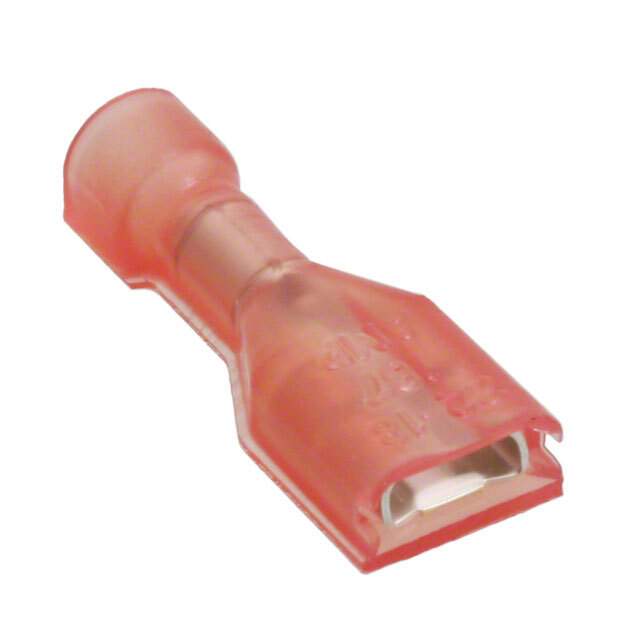

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 520193
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-42933-5041-SI-ND,A27805,A27805-ND,A27806CT,-2-42933-5041-SI,2-520193-2-ND,-2-520193-2-SI,25201932,A27806TR,-2-42933-5041-CSI,-2-520193-2-CSI,-2-42933-5041-CSI-ND
Standard Package 2,700
Win Source Part Number 1333724-2-520193-2
Ultra Librarian 3D Model Ultra Librarian 2-520193-2 CAD Model

Description

The 1333724-2-520193-2 is a female quick connect terminal designed for use in electronic devices that require a secure and reliable electrical connection.

  • Material: high-quality brass
  • Finish: tin
  • Wire Gauge: 18-22 AWG
  • Tab Width: 0.187 inches
  • Insulation: Fully insulated
  • Length: 0.855 inches
  • Mounting: In-line
  • Packaging: Reel
  • Ideal for: automotive, industrial, and consumer electronics
