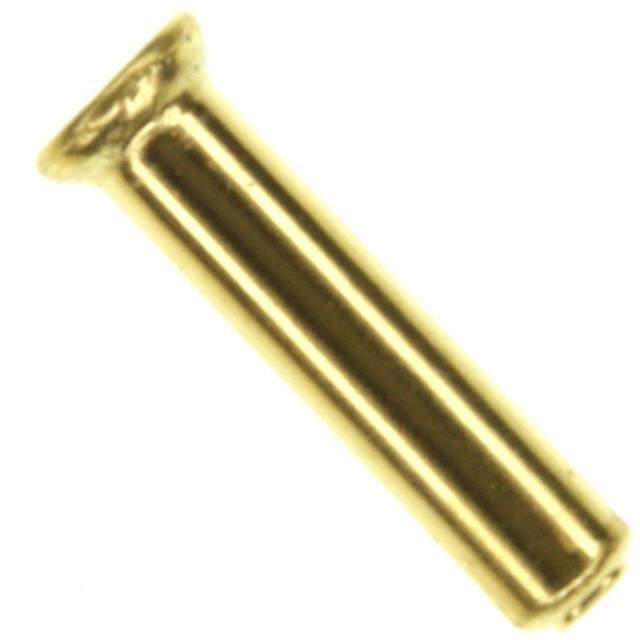

2-332095-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.178" (4.52mm)
Accepts Pin Diameter 0.013" ~ 0.020" (0.33mm ~ 0.51mm)
Mounting Hole Diameter 0.041" (1.04mm)
Flange Diameter 0.059" (1.50mm)
Socket Depth 0.165" (4.19mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Features Knockout Bottom
Temperature Range - Operating -65°C ~ 126°C
Base Product Number 332095
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 23320952,2266-2-332095-2,A26258,-2-332095-2-SI
Standard Package 2,000
Win Source Part Number 1333481-2-332095-2
Ultra Librarian 3D Model Ultra Librarian 2-332095-2 CAD Model

Description

The TE Connectivity AMP Connectors 332095-2 PC pin receptacle socket connector is a high-quality connector that is designed to provide a reliable and secure connection between your PCB and other electronic components.

  • Packaging: bulk
  • Feature: knockout bottom
  • Termination Style: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: beryllium copper
  • Overall Length: 0.178" (4.52mm)
  • Pin Diameter: 0.013" ~ 0.020" (0.33mm ~ 0.51mm)
  • Mounting Hole Diameter: 0.041" (1.04mm)
  • Flange Diameter: 0.059" (1.50mm)
  • Socket Depth: 0.165" (4.19mm)
  • Temperature Range: -65°C ~ 126°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: vendor undefined
  • HTSUS: 8538.90.8180
  • RoHS Compliant: yes
