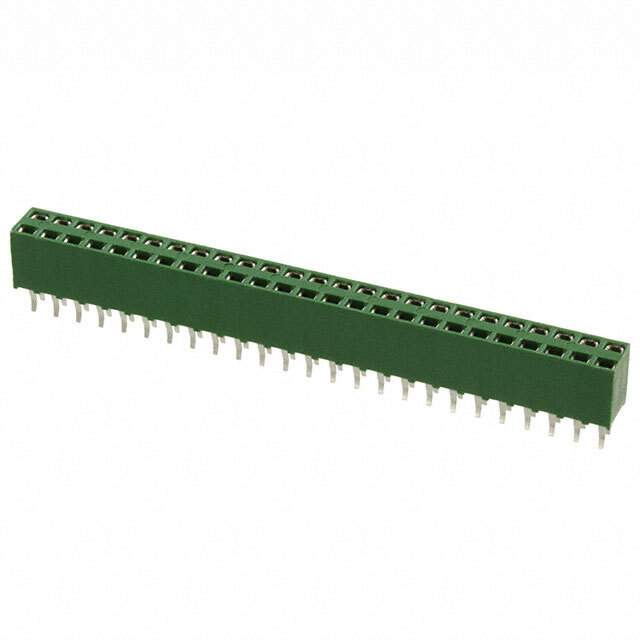

Same model may have multiple batches, images only for reference.

2-215307-5

Name: 2-215307-5
Brand: TE Connectivity
SKU: 761795
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2-215307-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT VERT HV-100 50POS
Datasheet	2-215307-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	AMPMODU HV-100
Packaging	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	31.5μin (0.80μm)
Insulation Color	Green
Insulation Height	0.276" (7.00mm)
Contact Length - Post	0.122" (3.10mm)
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	98.4μin (2.5μm)
Win Source Part Number	761795-2-215307-5
Popularity	Medium
Supply and Demand Status	Balance
Family Name	215307
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	Poland, United States of America
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 2-215307-5 CAD Model

Description

The AMPMODU HV-100 series from TE Connectivity AMP Connectors is a board-to-board style connector.

Positions: 50
Rows: 2
Connector Type: Receptacle, Female Socket
Mounting: Through Hole
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold, 31.5μin (0.80μm)
Contact Finish (Post): Tin, 98.4μin (2.5μm)
Insulation Material: Polyester, Glass Filled
Flammability Rating: UL94 V-0
Insulation Color: Green
Application: High-Density Interconnects
