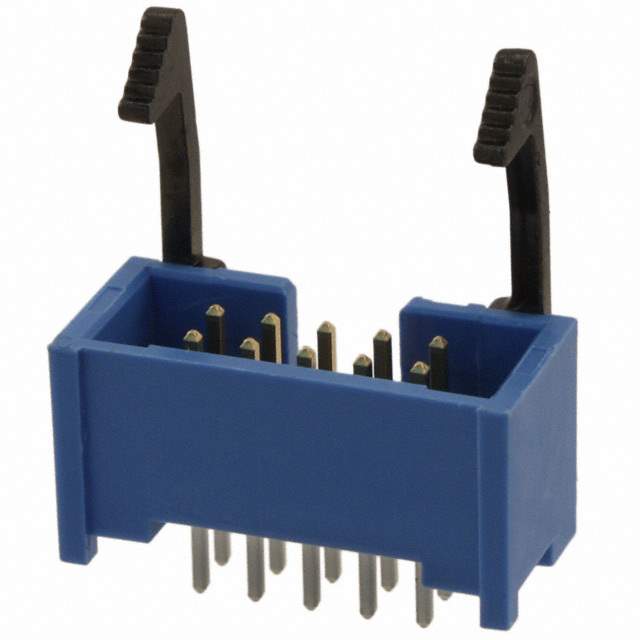

Name: 2-1761606-3
Brand: TE Connectivity
SKU: 1340473
Availability: InStock
Rating: 4.91 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMP-Latch
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.237" (6.02mm)
Contact Length - Post	0.102" (2.60mm)
Insulation Height	0.404" (10.26mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Current Rating (Amps)	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	1761606
Standard Package	26
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340473-2-1761606-3
Ultra Librarian 3D Model	Ultra Librarian 2-1761606-3 CAD Model

Description

The TE Connectivity AMP-Latch 1340473-2-1761606-3 is a male pin header connector with a rectangular shape. TE Connectivity AMP-Latch.

Number of Positions: 10
Keying Slot: Yes
Connector Type: Header
Contact Type: Male Pin
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Long
Package: Tube
Contact Material: Phosphor Bronze
Voltage Rating: 250VAC
Insulation Material: Polybutylene Terephthalate (PBT)
Style: Board to Cable/Wire
Pitch Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 100.0µin (2.54µm)
Insulation Color: Blue
Mounting Type: Through Hole
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Post: 0.102" (2.60mm)
Insulation Height: 0.404" (10.26mm)
Contact Shape: Square
Operating Temperature: -65°C ~ 105°C
Recommended Use: Rectangular Connectors
