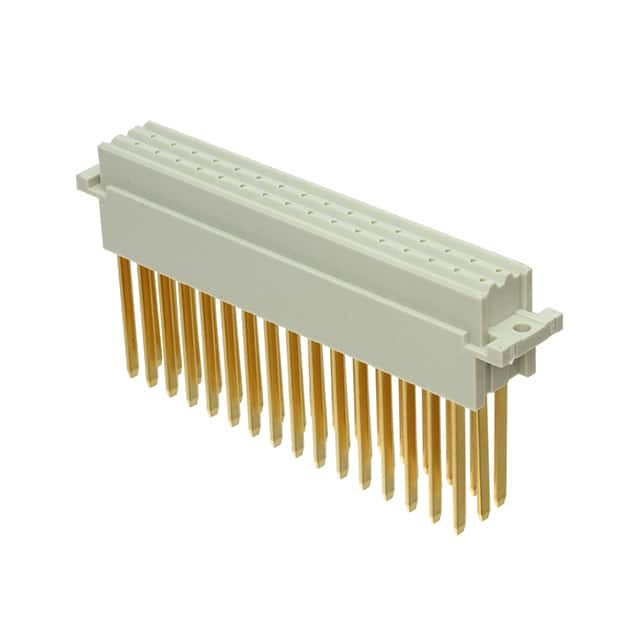

2-166010-1
Same model may have multiple batches, images only for reference.

2-166010-1

Part No 2-166010-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr TE Connectivity
Series Eurocard
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.200" (5.08mm)
Number of Rows 3
Style F
Level, Class 1
Mounting Type Through Hole
Termination Solder, Clip
Contact Finish Gold
Contact Finish Thickness 49.3µin (1.25µm)
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Polycarbonate (PC)
Base Product Number 166010
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847285-2-166010-1
Ultra Librarian 3D Model Ultra Librarian 2-166010-1 CAD Model

Description

The TE Connectivity electronic component with the part number 847285-2-166010-1 is a DIN 41612 backplane connector from the Eurocard series.

  • Series: Eurocard
  • Positions: 48
  • Pitch: 0.200" (5.08mm)
  • Connector Type: Receptacle with Female Sockets
  • Loaded Positions: All
  • Rows: 3
  • Termination Method: Solder with Clip
  • Contact Finish: Gold (49.3μin / 1.25μm)
  • Package: Tray
  • Standard Package: 20 pieces
  • Insulation Material: Polycarbonate (PC)
  • Flammability Rating: Not Specified
  • Style: F
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Status: Active
